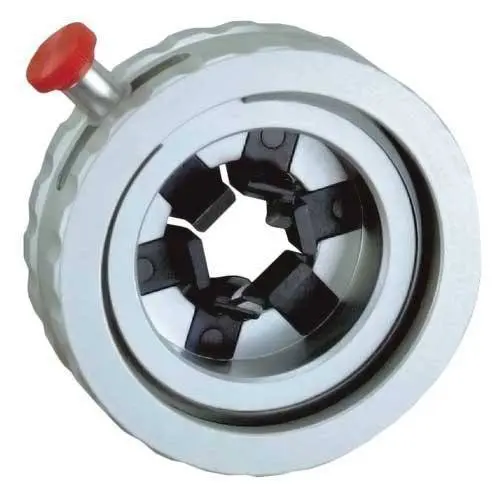

Ripley UtilityTool® IC Series URD Cable Insulation Chamfering Tools

$196.03$209.20

Clear
SKU: 34760, 34825 Categories: ,

Description

  • Chamfering tool creates a 45° bevel approximately 0.125″ (3.17 mm) in length
  • Easily adjusts to fit cable diameters from 0.65″ to 1.875″ (16.51 to 47.63 mm)
  • Suited for XLPE insulations
  • Features safe, recessed blades to prevent injury & blade damage

Compatibility:

Cable CompatibilityPrimary Distribution Underground
Cable AccessEnd
Min. Cable Outer Diameter0.65″ (16.51 mm)
Max. Cable Outer Diameter1.875″ (47.63 mm)
Insulation MaterialsXLPE
Min. Voltage15 kV
Max. Voltage35 kV

Comparison Chart:

Model

Part #

Dimensions

Weight

Replacement Blade Part #

O.D. Over Insulation/

Semi-Con

Chamfer Angle

Shave Length

IC 1

34760

3.5″ x 3.5″
(88.9 x 88.9 mm)

10 oz
(284 g)

34766

0.65″ - 1.26″ (16.51 - 32.0 mm)

45°

0.125″ (3.17 mm) Chamfer

IC 2

34825

4.188″ x 4.188″
(106.4 x 106.4 mm)

12.5 oz
(355 g)

 34766

1.25″ - 1.875″ (31.75 - 47.63 mm)

45°

0.125″ (3.17 mm) Chamfer

Additional information

SKU

IC 1, IC 2
