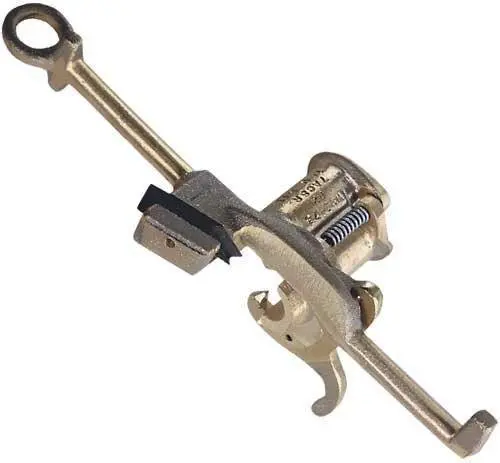

Ripley UtilityTool® WS 1 Series Non-Adjustable Tree Wire & Spacer Cable Mid-Span Stripper

Made in USA

SKU: 17200, 17500, 17300 Categories: ,

Description

  • Non-adjustable tool features a fixed cable diameter with a diameter selection from 0.32″ to 0.79″ (8.13 to 20.07 mm) for stripping to any length at any point along the cable end or mid-span
  • Operates in one continuous stripping motion
  • Designed for gloved hand or hot stick operation on all tree wire & spacer cables
  • Models are double-ended with one hook & one ring, two plastic handles or two 3/4″ (19 mm) rings

Compatibility:

Cable Compatibility Tree Wire, Spacer Cables
Cable Access Mid-Span, End
Min. Cable Outer Diameter 0.32″ (8.13 mm)
Max. Cable Outer Diameter 0.79″ (20.07 mm)
Min. Voltage 5 kV
Max. Voltage 15 kV

Specs:

Length 11″ (279 mm)
Weight 2.5 lb (1.13 kg)
Replacement Blade Part # 10114 (Insulation 45 – 125 mil), 10113 (Insulation 125 – 200 mil)



Model

Part #

Handles

Insulation Thickness

Cable Selection

WS 1

17200-XXX

Hook / Ring

  • 45 - 125 mils
  • 125 - 200 mils
  • 0.32″ - 0.79″ (8.13 - 20.07 mm)

    WSP 1

    17500-XXX

    Plastic

  • 45 - 125 mils
  • 125 - 200 mils
  • 0.32″ - 0.79″ (8.13 - 20.07 mm)

    WSR 1

    17300-XXX

    3/4ʺ

    (19 mm) Rings

  • 45 - 125 mils
  • 125 - 200 mils
  • 0.32″ - 0.79″ (8.13 - 20.07 mm)
