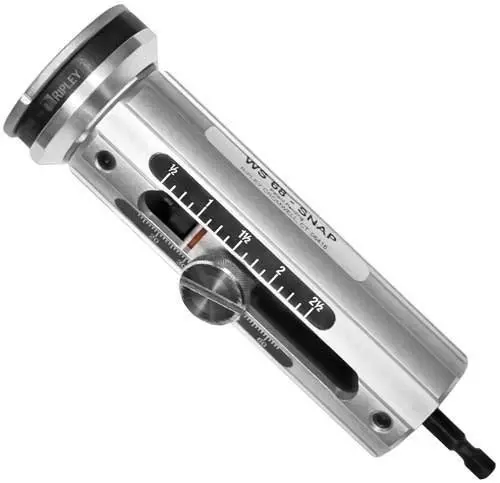

Ripley UtilityTool® WS 68 & WS 68 SNAP Series Power-Driven End Strippers

Add to quote
SKU: 37430, 37430-1, 37430-2, 37430-3, 40100, 40100-1, 40100-2, 40100-3, 40100-4, 40115, 40115-1, 40115-2, 40115-3, 40115-4 Categories: ,

Description

  • Increases safety by eliminating the use of traditional knives, reducing the risk of cuts or lacerations
  • Easily attaches to a power drill for safe & efficient cable stripping
  • WS 68 SNAP’s patent-pending quick connect collar design makes changing bushings faster & more efficient even with gloves on
  • Compatible with #6 AWG to 750 MCM & features adjustable strip lengths ranging from 0.625″ up to 5.0″ (15.875 to 127 mm) depending on the model

Compatibility:

Conductor TypeConcentric, Compressed, Compacted
Cable CompatibilitySecondary Distribution
Cable AccessEnd
Min. Cable Outer Diameter#6 AWG
Max. Cable Outer Diameter750 kcmil
Max. Voltage600 V

Specs:

Item TypeTool Body Only
Strip Stop ScaleYes

Bushing Sizes:

Comparison Chart:

Model

Part #

Item Type

Quick Connect/

Release Collar

Length

Weight

Strip

Length

Drive Attachment

WS 68

37430

Tool Body Only

No

6.63″
(168 mm)

10.4 oz
(294 g)

0.625″ - 2.5″ (15.875 - 63.5 mm)

1/4ʺ Hex

WS 68

37430-1

Tool Body Only

No

6.63″
(168 mm)

10.4 oz
(294 g)

0.625″ - 2.5″ (15.875 - 63.5 mm)

3/8ʺ Drill

WS 68

37430-2

Tool Body Only

No

6.63″
(168 mm)

10.4 oz
(294 g)

0.625″ - 2.5″ (15.875 - 63.5 mm)

3/8ʺ Square

WS 68

37430-3

Tool Body Only

No

6.63″
(168 mm)

10.4 oz
(294 g)

0.625″ - 2.5″ (15.875 - 63.5 mm)

1/2ʺ Square

WS 68 SNAP

40100

Tool Body Only

Yes

6.5″
(165.1 mm)

12.6 oz
(357.2 g)

0.625″ - 2.5″ (15.875 - 63.5 mm)

3/8ʺ Drill

WS 68 SNAP

40100-1

Tool Body Only

Yes

6.5″
(165.1 mm)

12.6 oz
(357.2 g)

0.625″ - 2.5″ (15.875 - 63.5 mm)

  • 1/4ʺ Hex
  • 3/8ʺ Square

    • WS 68 SNAP

    40100-2

    Tool Body Only

    Yes

    6.5″
    (165.1 mm)

    12.6 oz
    (357.2 g)

    0.625″ - 2.5″ (15.875 - 63.5 mm)

    1/4ʺ Hex

    WS 68 SNAP

    40100-3

    Tool Body Only

    Yes

    6.5″
    (165.1 mm)

    12.6 oz
    (357.2 g)

    0.625″ - 2.5″ (15.875 - 63.5 mm)

    3/8ʺ Square

    WS 68 SNAP

    40100-4

    Tool Body Only

    Yes

    6.5″
    (165.1 mm)

    12.6 oz
    (357.2 g)

    0.625″ - 2.5″ (15.875 - 63.5 mm)

    1/2ʺ Square

    WS 68 SNAP XL

    40115

    Tool Body Only

    Yes

    9.0″
    (228.6 mm)

    14.2 oz
    (401.9 g)

    0.625″ - 5″ (15.875 - 127 mm)

    3/8ʺ Drill

    WS 68 SNAP XL

    40115-1

    Tool Body Only

    Yes

    9.0″
    (228.6 mm)

    14.2 oz
    (401.9 g)

    0.625″ - 5″ (15.875 - 127 mm)

  • 1/4ʺ Hex
  • 3/8ʺ Square

    • WS 68 SNAP XL

    40115-2

    Tool Body Only

    Yes

    9.0″
    (228.6 mm)

    14.2 oz
    (401.9 g)

    0.625″ - 5″ (15.875 - 127 mm)

    1/4ʺ Hex

    WS 68 SNAP XL

    40115-3

    Tool Body Only

    Yes

    9.0″
    (228.6 mm)

    14.2 oz
    (401.9 g)

    0.625″ - 5″ (15.875 - 127 mm)

    3/8ʺ Square

    WS 68 SNAP XL

    40115-4

    Tool Body Only

    Yes

    9.0″
    (228.6 mm)

    14.2 oz
    (401.9 g)

    0.625″ - 5″ (15.875 - 127 mm)

    1/2ʺ Square

    WS 68 & WS 68 SNAP Instruction Sheet
