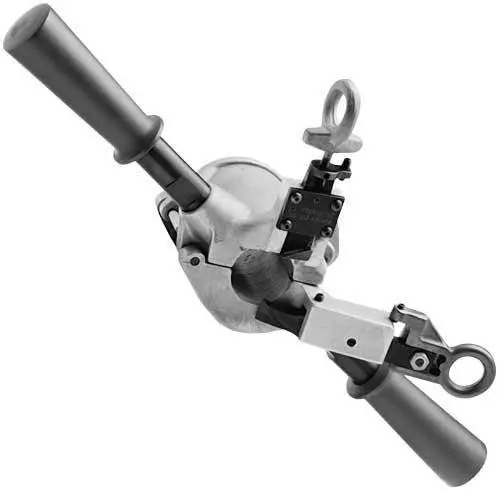

Ripley UtilityTool® WS 10 Series Non-Adjustable Cable Stripper For Tree Wire & Spacer Cable Mid-Spans

Made in USA

SKU: 11300, 11335, 11330, 11345 Categories: ,

Description

  • Non-adjustable tool features a fixed cable diameter with a diameter selection from 1.05″ to 1.8″ (26.67 to 45.72 mm) for stripping to any length at any point along the cable end or mid-span
  • Designed for gloved hand & hot stick operation on all tree wire & spacer cables
  • Models are double-ended with two plastic handles or two 3/4″ (19 mm) rings

Compatibility:

Cable Compatibility    Tree Wire, Spacer Cables
Cable AccessMid-Span, End
Min. Cable Outer Diameter1.05″ (26.67 mm)
Max. Cable Outer Diameter1.80″ (45.72 mm)
Min. Voltage15 kV
Max. Voltage35 kV

Specs:

Weight4 lb (1.81 kg)

Comparison Chart:

Model

Part #

Handles

Length

Replacement Blade Part #

Insulation Thickness

Cable Selection

WSP 10

11300-XXX

Plastic

15″
(381 mm)

 11313

< 200 mils

1.05″ - 1.80″ (26.67 - 45.72 mm)

WSR 10

11335-XXX

3/4ʺ (19 mm) Rings

15″
(381 mm)

11313

< 200 mils

1.05″ - 1.80″ (26.67 - 45.72 mm)

WSPK 10

11330-XXX

Plastic

15″
(381 mm)

19704, 34782

> 200 mils

1.05″ - 1.80″ (26.67 - 45.72 mm)

WSRK 10

11345-XXX

3/4ʺ (19 mm) Rings

12″
(305 mm)

19704, 34782

> 200 mils

.05″ - 1.80″ (26.67 - 45.72 mm)
