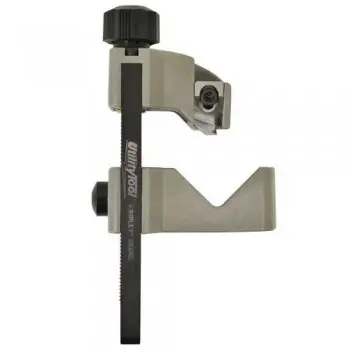

The innovative US10 Cable Insulation Chamfering Tool utilizes a size adjustment clamping system to quickly and easily adjust and lock onto the insulation. Its compact, low friction, thermoplastic V-jaw construction and PTFE-coated aluminum frame provides a stable and precise clamping platform in any space.
- Easily adjusts to suit XLPE & EPR insulation materials on 0.55″ to 2.36″ (14 mm to 60 mm) cable diameters
- Performs a 30° angle bevel with a factory-set chamfer depth of 0.075″ (1.905 mm), adjustable from 0″ to 0.150″ (0 mm to 3.81 mm); 15-35 kV
- Equipped with safe, recessed blade to prevent potential injury & blade damage
- Features a replaceable, machined & ground tool steel blade
Comparison Chart:
Model | Part # | Replacement Blade Part # | O.D. Over Insulation/Semi-Con | Chamfer Angle |
|---|---|---|---|---|
30 Degree Chamfer Tool | US10-7000 | US10-7500 | ||
45 Degree Chamfer Tool | US10-7001 | US10-7501 |
Compatibility:
Cable Compatibility: | Primary Distribution Underground |
Color: | Gray |
Cable Access: | End |
Insulation Materials: | XLPE, EPR |
Min. Voltage: | 15 kV |
Max. Voltage: | 35 kV |
O.D. Over Insulation/Semi-Con | 0.55"-2.36" (14-60 mm) |
Material: | Impact-Resistant Polymer |
Replacement Blade Part #: | US10-7500 |
