  • Ripley UtilityTool® WS 22A Series Power-Driven End Stripper

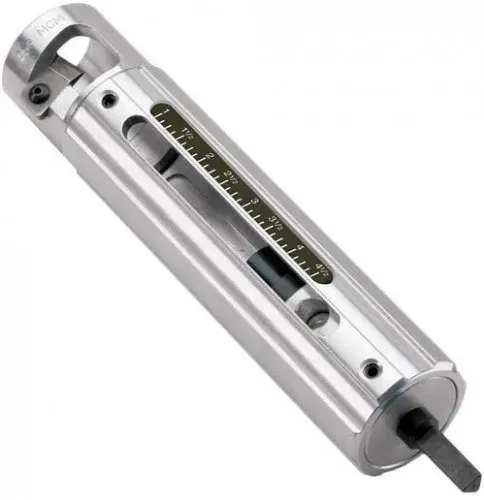

Ripley UtilityTool® WS 22A Series Power-Driven End Stripper

$29.38$142.51

Clear
  • Ergonomic end stripping tool designed for 600 volt secondary cable with bushings from 1/0 AWG to 1000 kcmil
  • Reduce working time & effort on repetitive stripping functions
  • Guarded blades increase safety
  • Adjustable strip stop with adjustment window allows easy setup for 1″ to 5″ (25.4 to 127 mm) strip length

NOTE: The WS 22A is available with or without bushings. Select square cut bushings from the bushings tab. Please specify two bushings when ordering the WS 22A.

Compatibility:

Conductor TypeConcentric, Compressed, Compacted
Cable CompatibilitySecondary Distribution
Cable AccessEnd
Min. Cable Outer Diameter#1/0 AWG
Max. Cable Outer Diameter1000 kcmil
Max. Voltage600 V



Specs:

Length7.44″ (189 mm)
Weight15 oz (426 g)



Model

Part #

Item Type

Quick Connect / Release Collar

Length

Weight

Strip Length

Drive Attachments

WS 22A

12340

Tool Body Only

No

 7.44″ (189 mm)

 15 oz (426 g)

1"-5" (25.4-127mm)

3/8" Drill

WS 22A

12340-1

Tool Body Only

No

 7.44″ (189 mm)

 15 oz (426 g)

1"-5" (25.4-127mm)

1/4" Hex

WS 22A

12340-2

Tool Body

No

 7.44″ (189 mm)

 15 oz (426 g)

1"-5" (25.4-127mm)

3/8" Square

WS 22A

12340-3

Tool Body Only

No

 7.44″ (189 mm)

 15 oz (426 g)

1"-5" (25.4-127mm)

1/2" Square

Bushing Sizes:

SKU

12340, 12340-1, 12340-2, 12340-3, 12329, 37439, 12335, 12337, CB 22
