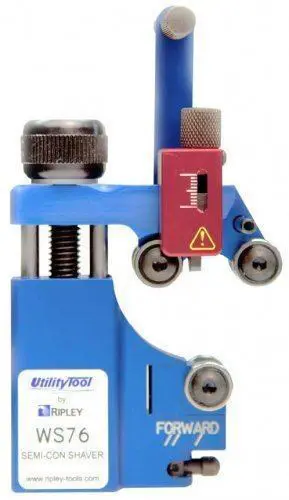

WS 76 Series- 15-35kV Cable Semi-Con Shaving Tool
Description
- Precision tool ideal for shaving bonded semi-con on 15 to 35 kV polyethylene & XLPE insulated cables with diameters from 0.71″ to 2.36″ (18 to 60 mm)
- Forward position accurately removes the semi-con within 0.984″ (25 mm) of the jacket & the reverse feature removes the semi-con shield within 0.275″ (7 mm)
- Precision ground blade is adjustable in 0.004″ (0.1 mm) increments & finishes the cable end with a 20° chamfer cut
- Thumbscrew provides an easy transition between spiral shaving & square-cut finish operations without the need for an additional stop device
- No tools required for blade replacement
Compatibility:
| Cable Compatibility | Primary Distribution Underground | |
| Cutting Type | Spiral, Square | |
Specs:
| Cable Access | End | |
| Min. Voltage | 15 kV | |
| Max. Voltage | 35 kV | |
| Patent Number(s) | U.S. Patent No. D708,035S | |
| Shaves Semi-Con | Yes | |
| Replacement Blade Part # | 43577 | |
Comparison Chart:
Model | Part # | Tool Case Included | Length | Weight | Semi-Con Diameter | Chamfer Angle |
|---|---|---|---|---|---|---|
WS 76 (Tool Only) | 43580 | No | 5.52" (140.3 mm) | 1 lb (454 g) | 0.71"-2.36" (18-60 mm) | |
WS 76 with Case | 43560 | Yes | N/A | N/A | 0.71"-2.36" (18-60 mm) |
