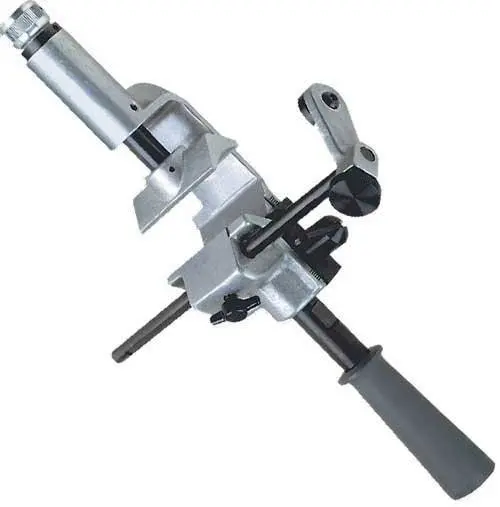

Ripley UtilityTool® WS 50 & WS 50A Series Adjustable Jacket & Insulation Stripper

$77.06 – $417.56

Made in USA

Clear
Add to quote
SKU: N/A Categories: ,

Description

  • Designed for use on 1/0 AWG to 1000 kcmil URD cable without damaging the conductor
  • Dual-handle design provides safe & easy stripping operation on all thicknesses of XLPE, plastic, polyethylene & EPR insulations

WS 50A Model:

  • Equipped with an adjustable strip stop bar for exact stripping lengths & removable to allow for unlimited stripping operations

Compatibility:

Cable Size 1/0 AWG to 1000 kcmil
Cable Compatibility Primary Distribution Underground
Insulation Materials XLPE, EPR, PE, Plastic

Specs:

Material Aluminum
Length 14.5″ (368 mm)
Weight 2.1 lb (953 g)
Replacement Blade Part # 30712 (Standard Reach), 30703 (Long Reach)

Comparison Chart:

Model

Part #

Adjustable Strip Stop Bar

Min. Cable Outer Diameter

Max. Cable Outer Diameter

Min.

Voltage

Max.

Voltage

WS 50

30700

No

0.5″(12.7 mm)

2.25″(57.15 mm)

5 kV

46 kV

WS 50A

30713

Yes

0.5″(12.7 mm)

2.25″(57.15 mm)

5 kV

46 kV

Additional information

SKU

WS 50, WS 50A, CB 50A, CB 50
