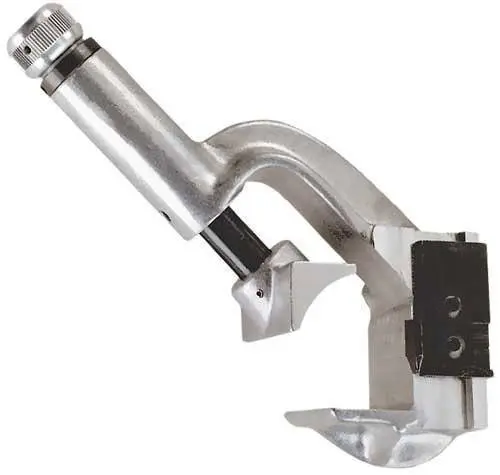

Ripley UtilityTool® WS 9 Series Cable Bonded Semi-Con & Shield Shaving Tool

$102.30$764.34

Made in USA

SKU: 38430, 38435, 20700, 28215, 38035, 28215-3 Categories: ,
  • Tools shave in a helical, spiral pattern
  • Available as a radius or a taper cut

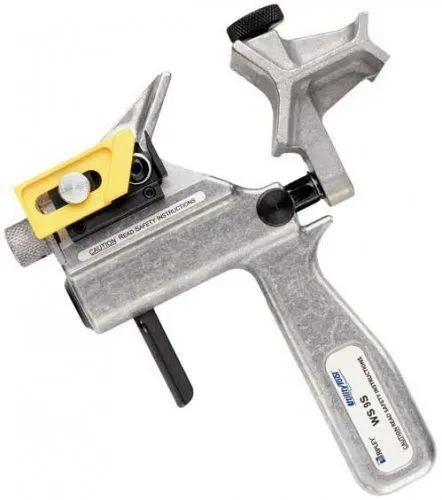

WS 9S & WS 9ST

  • Shaves the bonded semi-con on 5 to 35 kV cables with diameters from 0.50″ to 2.50″ (12.7 to 63.5 mm)

WS 9A & WS 9C

  • Shaves the bonded semi-con shield & insulation material on 5 to 35 kV cables with diameters from 0.55″ to 2.25″ (13.97 to 57.15 mm)

WS 9D & WS 9E

  • Shaves the bonded semi-con on transmission cables with diameters from 1.9″ to 3.625″ (48.3 to 92.1 mm)



Compatibility:

Cable Compatibility:

Primary Distribution Underground

Specifications:

Cable Access:

End

Material:

Aluminum

Shaves Semi-Con:

Yes

Comparison Chart:

Model

Part #

Length

Weight

Replacement Blade Part #

Min. Cable Out Diameter

Max. Cable Outer Diameter

Min. Voltage

Max. Voltage

Cutting Type

WS 9S

38430

8"

 (200 mm)

1.9 lb (860 g)

21715

0.5" (12.7mm)

2.5" (63.5 mm)

5 kV

35 kV

Radius

WS 9S-T

38435

8" (200 mm)

1.9 lb (860 g)

28201

0.5" (12.7mm)

2.5" (63.5 mm)

5 kV

35 kV

Taper

WS 9A

20700

10" (254 mm)

2 lb

(908 g)

21715

0.55" (13.97  mm)

2.25" (57.15 mm)

5 kV

35 kV

Radius

WS 9C

28215

10" (254 mm)

2 lb

(908 g)

28201

0.55" (13.97  mm)

2.25" (57.15 mm)

5 kV

35 kV

Taper 0.25" (6.4 mm)

WS 9D

38035

16.2" (411 mm)

2.74 lb (1.24 kg)

24305

1.90" (48.3 mm)

3.625" (92.1  mm)

Transmission

N/A

Radius

WS 9E

28215-3

16.2" (411 mm)

2.74 lb (1.24 kg)

28201

1.90" (48.3 mm)

3.625" (92.1  mm)

Transmission

N/A

Taper

SKU

WS 9S, WS 9S-T, WS 9A, WS 9C, WS 9D, WS 9E, WS 9B, CB 40X, CB 98
