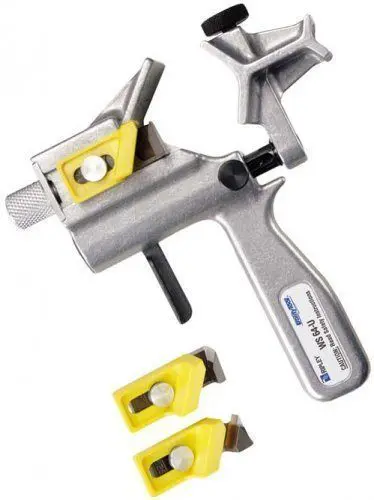

- Compact, universal tool for stripping the end or mid-span on cable outer jackets & insulation materials with diameters from 0.5″ to 2.5″ (12.7 mm to 63.5 mm)
- “Dual-position” jaw is versatile for removal of the outer jacket on primary power cables with all major insulation shields
- Blade design provides an easy & efficient stripping operation with minimal effort, as well as a spring-loaded trigger-action jaw for quick cable diameter adjustments
- Suitable for secondary & primary cable insulations
- Rugged, all metal construction & micro adjustable blade for a variety of jacket thicknesses
Compatibility:
Cable Compatibility: | Primary Distribution Overhead, Primary Distribution Underground, Secondary Distribution |
Min. Voltage: | 5 kV |
Max. Voltage: | 35 kV |
Specifications:
Material: | Aluminum |
Patent Number(s): | U.S. Patent No. D437, 765 |
Length: | 8" (200 mm) |
Weight: | 1.9 lb (860 g) |
Comparison Chart:
Model | Part # | Replacement Blade Part # | Cable Access | Min. Outer Jacket Diameter | Max. Outer Jacket Diameter | Insulation Thickness |
---|---|---|---|---|---|---|
WS 64-U-E | 37296 | 37284 | End | 0.5″ | 2.5″ | 175 mils (4.4 mm) |
WS 64-U-M | 37297 | 37299 | Mid-Span | 0.5″ | 2.5″ | 175 mils (4.4 mm) |
WS 64-U-EM | 37295 | 37284, 37299 | 0.5″ | 2.5″ | 175 mils (4.4 mm) | |
WS 64-U-M260 | 37174 | 42395 | Mid-Span | 0.5″ | 2.5″ | 345 mils (8.8 mm) |
