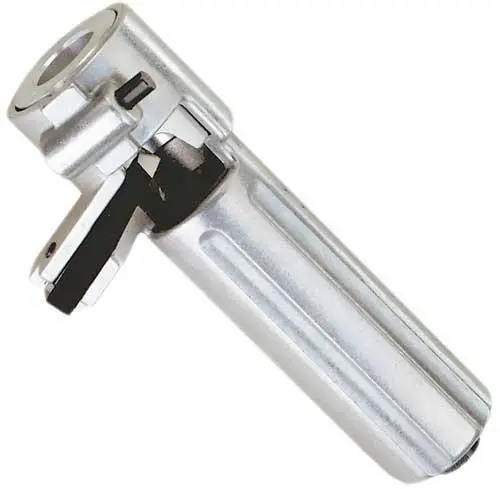

Ripley UtilityTool® WS 5 Series Cable End Stripper

$193.24$308.61

Clear
SKU: 10327, 10336, 37710, 37415, 38750 Categories: ,

Description

  • Precision tool engineered to strip XLPE, polyethylene & EPR insulations up to 400 mils thick from primary URD cable diameters of 0.26″ to 1.265″ (6.6 to 32.12 mm)
  • Provides insulation only or simultaneous insulation & semi-con stripping operations
  • Guarded cutting blade prevents injury & protects the blade
  • Bushings accommodate various insulation & semi-con diameters
  • Compatible with the with the SW 2 Series Ratchet Wrench for greater leverage
  • Stop bar measurements are available in customary or metric units

WS 5 DA Model:

  • Equipped with a drill adapter stop bar

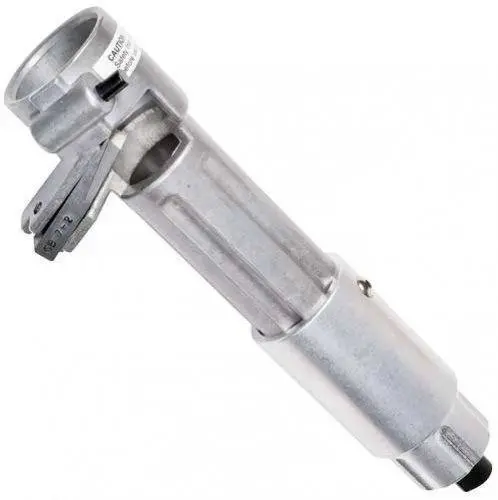

WS 5B Model:

  • Provides an extended stripping length

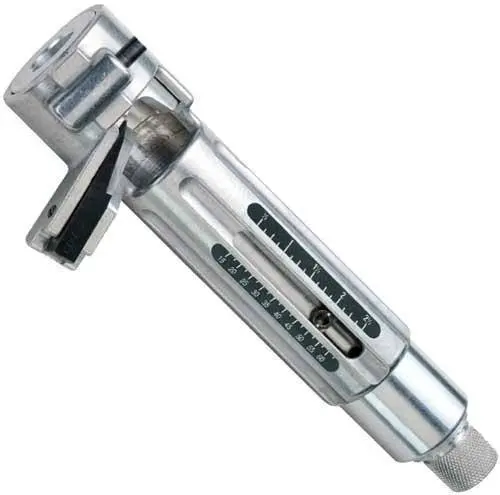

WS 5A Model:

  • Equipped with an adjustable strip stop mechanism & an adjustment window with a strip stop scale; also eliminates the need for a hex wrench

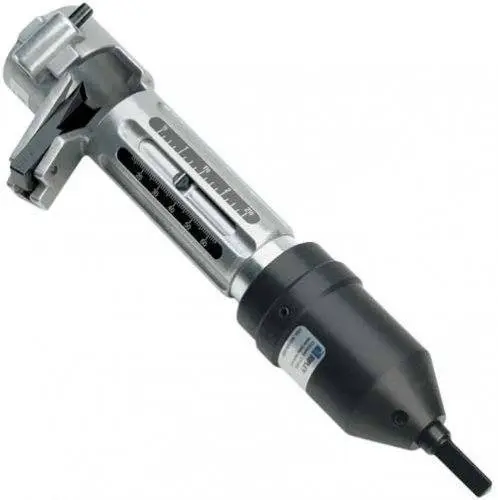

WS 5A DA Model:

  • Equipped with a 3/8″ drill adapter, an adjustable strip stop mechanism & an adjustment window with a strip stop scale; also eliminates the need for a hex wrench

Compatibility:

Cable CompatibilityPrimary Distribution Underground, Secondary Distribution
Cable AccessEnd
Min. Cable Outer Diameter0.26″ (6.6 mm)
Max. Cable Outer Diameter1.265″ (32.12 mm)
Insulation MaterialsXLPE, EPR, PE
Min. Voltage600 V
Max. Voltage35 kV
Insulation ThicknessUp to 400 mils

Specs:

Shaves Semi-ConYes
Replacement Blade Part #10324

Bushings:

Comparison Chart:

Model

Part #

Adjustable Strip Stop Bar

Strip Stop Scale

Length

Dimensions

Strip Length

Drive Attachment

WS 5

10327

No

No

6″
(152 mm)

1 lb
(454 g)

0.75″ - 3.75″ (19.05 - 95.2 mm)

  • Manual
  • Wrench
  • WS 5 DA

    10336

    Yes

    No

    7″
    (178 mm)

    1 lb
    (454 g)

    0.75″ - 3.75″ (19.05 - 95.2 mm)

  • Manual
  • Wrench
  • 3/8ʺ Drill
  • WS 5B

    37710

    Yes

    No

    10″
    (254 mm)

    1.7 lb
    (770 g)

    0.75″ - 5.75″ (19.05 - 146.05 mm)

  • Manual
  • Wrench
  • WS 5A

    37415

    Yes

    Yes

    8″
    (203 mm)

    1 lb
    (454 g)

    0.625″ - 2.5″ (15.875 - 63.5 mm)

  • Manual
  • Wrench
  • WS 5A DA

    38750

    Yes

    Yes

    8″
    (203 mm)

    1.2 lb
    (544 g)

    0.625″ - 2.5″ (15.875 - 63.5 mm)

  • Manual
  • Wrench
  • 3/8" Drill
  • Additional information

    SKU

    WS 5, WS 5 DA, WS 5B, WS 5A, WS 5A DA
