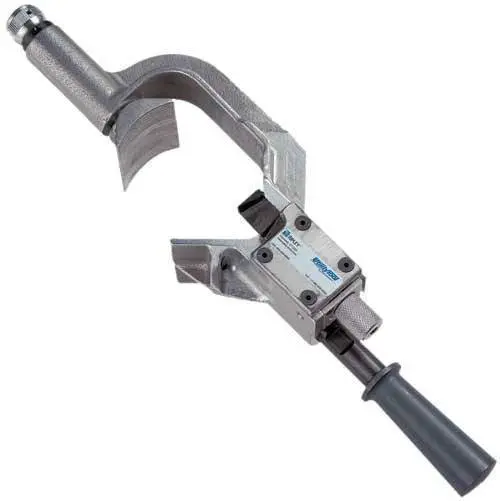

- Versatile tool strips the outer jacket & insulating material on cable diameters from 1.9″ to 3.65″ (48 to 93 mm)
- Blade features fine adjustment & dual-handle design provides greater stripping leverage
- Blade design increases control during the stripping operation
Compatibility:
Cable Compatibility | Primary Distribution Overhead, Primary Distribution Underground | |
Min. Cable Outer Diameter | 1.9″ (48 mm) | |
Max. Cable Outer Diameter | 3.65″ (93 mm) | |
Min. Voltage | 46 kV | |
Max. Voltage | 69 kV |
Specs:
Material | Aluminum |
Length | 17.5″ (444 mm) |
Weight | 3.3 lb (1.5 kg) |
Replacement Blade Part # | 42042 |
Tool Model | Tool Part No. | Blade Model | Use |
---|---|---|---|
WS70 | 42040 | CB 265 | General purpose stripping with conservative feed best suited for cable outer jackets and some XLPE insulation removal |
WS70-1 | 42040-1 | CB265-2 | Designed with a more aggressive stripping feed for faster insulation removal on XLPE and most EPR insulated cables |
WS70-2 | 42040-2 | CB265-4 | Designed with most aggressive stripping feed for soft EPR insulations. This tool model was specifically developed for Kerite EPR insulated cables. |
