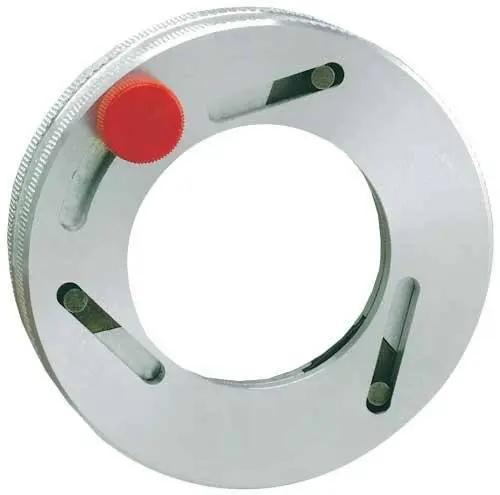

Ripley UtilityTool® SCC Series Adjustable Cable Semi-Con Chamfering Tools

Add to quote
SKU: 28224-2 Categories: , ,

Description

  • Precision chamfering tool designed for 25 to 80 mils (0.635 to 2.032 mm) thick semi-con on cable diameters from 0.76″ to 2″ (19.3 to 50.8 mm)
  • Easily adjusts to fit the cable diameter
  • Features safe, recessed blades to prevent injury & blade damage

Compatibility:

Cable Compatibility                                            Primary Distribution Underground
Cable AccessEnd
Min. Cable Outer Diameter0.76″ (19.3 mm)
Max. Cable Outer Diameter2″ (50.8 mm)
Shaves Semi-Con Yes

Comparison Chart:

Model

Part #

Dimensions

Weight

Replacement Blade Part #

Insulation Thickness

O.D. Over Insulation/

Semi-Con

SCC 2

28224-2

 3.5″ x 3.5″
(88.9 x 88.9 mm)

5.5 oz
(156 g)

28230

25 - 80 mils (0.635 - 2.032 mm)

1.4″ - 2.0″ (35.56 - 50.80 mm)

SCC Instruction Sheet
