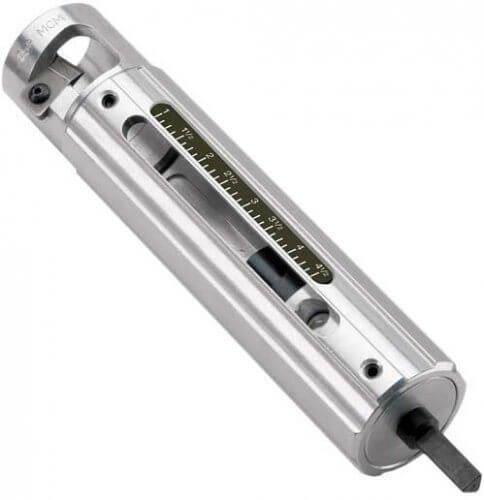

- Ergonomic end stripping tool designed for 600 volt secondary cable with bushings from 1/0 AWG to 1000 kcmil
- Reduce working time & effort on repetitive stripping functions
- Guarded blades increase safety
- Adjustable strip stop with adjustment window allows easy setup for 1″ to 5″ (25.4 to 127 mm) strip length
NOTE: The WS 22A is available with or without bushings. If you would like to order the WS 22A with 2 bushings, please take a look at the available square cut bushings from the bushings below and submit a Request for Quote. A Powertech Associates representative will get back to you within 24 hours.
Compatibility:
Conductor Type: | Concentric, Compressed, Compacted |
Cable Compatibility: | Secondary Distribution |
Cable Access: | End |
Min. Cable Outer Diameter: | #1/0 AWG |
Max. Cable Outer Diameter: | 1000 kcmil |
Max. Voltage: | 600 V |
Specifications:
Length: | 7.44" (189 mm) |
Weight: | 15 oz (426 g) |
Comparison Chart:
Model | Part # | Item Type | Quick Connect / Release Collar | Length | Weight | Strip Length | Drive Attachments |
|---|---|---|---|---|---|---|---|
WS 22A | 12340 | Tool Body Only | No | 7.44″ (189 mm) | 15 oz (426 g) | 1"-5" (25.4-127mm) | 3/8" Drill |
WS 22A | 12340-1 | Tool Body Only | No | 7.44″ (189 mm) | 15 oz (426 g) | 1"-5" (25.4-127mm) | 1/4" Hex |
WS 22A | 12340-2 | Tool Body | No | 7.44″ (189 mm) | 15 oz (426 g) | 1"-5" (25.4-127mm) | 3/8" Square |
WS 22A | 12340-3 | Tool Body Only | No | 7.44″ (189 mm) | 15 oz (426 g) | 1"-5" (25.4-127mm) | 1/2" Square |
WS 22 SNAP | 40130 | Tool Body Only | Yes | 8.4" (213.4 mm) | 9.6 oz (272.2 g) | 1.5"-5.25" (28.1-133.4 mm) | 3/8" Drill |
