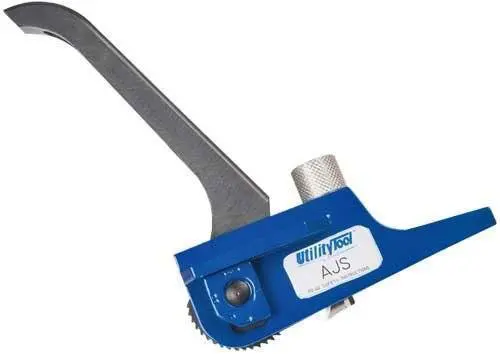

AJS Series- Adjustable Cable Jacket & Insulation Slitter

Description

  • Professional-grade indexing slitter engineered for longitudinal & circumferential (ringing) cuts on the cable mid-spans or ends
  • Ideal for slitting cable coverings ranging from soft insulated jackets to high-density polyethylene HDPE conduits, as well as aluminum & copper (smooth & corrugated construction) coverings
  • High-quality steel blade accommodates slitting irregular cable diameters & thicknesses while still protecting underlying conductors
  • Blade fully retracts inside the tool body to prevent injury & blade damage
  • Adjustable blade knob indexes in quarter turn intervals with adjustments in increments of 0.013″ (0.32 mm)

 Compatibility:

Cutting TypeRadial, Longitudinal
Cable DiametersLongitudinal Slit 0.5″ (12.7 mm), Circumferential Slit 1.5″ (38 mm), Mid-Span Window 1.5″ (38 mm)

Specs:

Cable AccessMid-Span, End
Min. Cable Outer Diameter0.5″ (12.7 mm)
Max. Cable Outer Diameter1.5″ (38 mm)
Insulation ThicknessUp to 0.25″ (6.3 mm)
MaterialAluminum, Steel
Length8.7″ (221 mm)
Weight11 oz (328 g)
Replacement Blade Part #43265
