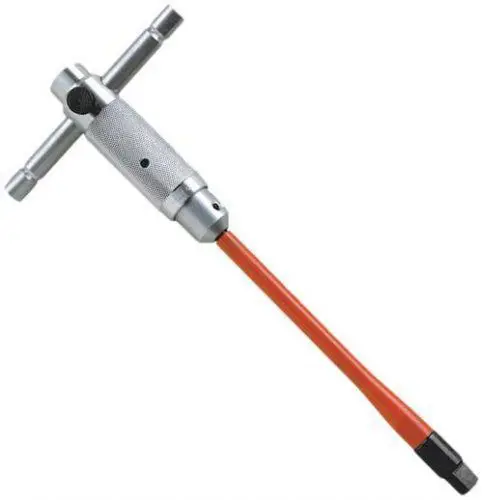

MBTT-150 Series- Meter Base Torquing Tool

Description

  • Designed for the proper installation of Landis+Gyr ″K″ Base 3 Phase or similar meters
  • Provides 150 in-lb of torque without over or under-tightening
  • Insulated & isolated from the meter base with a composite shaft rated to 1,000 volts
  • Equipped with a 1/2″ square socket drive that accepts a magnetic installation socket & features a 3/8″ square socket torque test point
  • Adjustable ″T″ handle provides greater leverage

     NOTE: Do not use this tool for removal of un-torqued terminals or serious shaft damage may occur.

Compatibility:

Torque150 in-lb (±15 in-lb)
Max. Voltage1 kV
CompatibilityLandis & Gyr “K” Base 3 Phase

Specs:

Length13.75″ (349.25 mm)
Weight19 oz (539.13 g)
