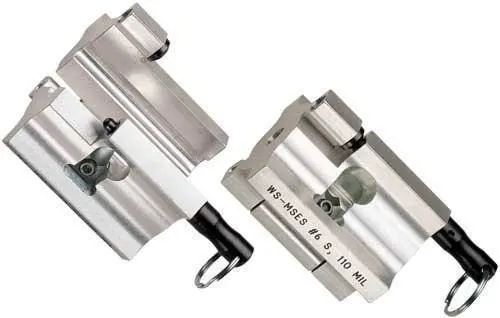

- Efficient polyethylene covering removal tool for stripping the mid-span & ends on primary voltage tap & riser wires
- Removes a section of the cable jacket at the mid-span to easily clamp to lightning arrestors
- Unique spring-loaded locking bolt opens the tool body halves for quick positioning onto the cable & a convenient pull ring located at the end of the locking bolt attaches to tool belts & pouches
Compatibility:
Cable Compatibility: | Tap & Riser Wires |
Specifications:
Length: | 4.25" (108 mm) |
Weight: | 15 oz (426 g) |
Comparison Chart:
Model | Part # | Replacement Blade Part # | Insulation Thickness | Cable Size |
---|---|---|---|---|
WS-MSES #2 110 mil | 37388 | 37111 | 110 mils | #2 |
WS-MSES #2 150 mil | 37730 | 37803 | 150 mils | #2 |
WS-MSES #4 Solid 110 mil | 38060 | 37111 | 110 mils | #4 (Solid) |
WS-MSES #4 110 mil | 37380 | 37111 | 110 mils | #4 |
WS-MSES #4 150 mil | 37715 | 37803 | 150 mils | #4 |
WS-MSES #6 Solid 110 mil | 37384 | 37111 | 110 mils | #6 (Solid) |
WS-MSES #6 150 mil | 37800 | 37803 | 150 mils | #6 |
