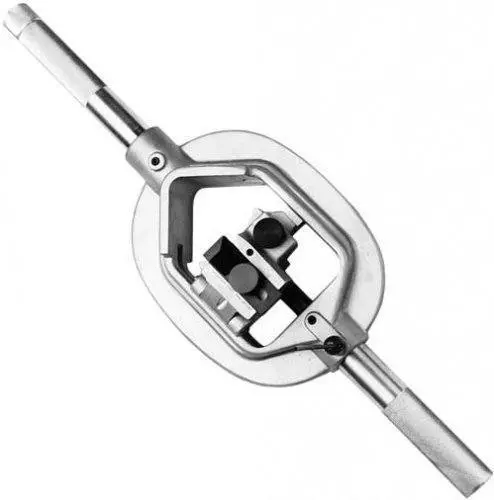

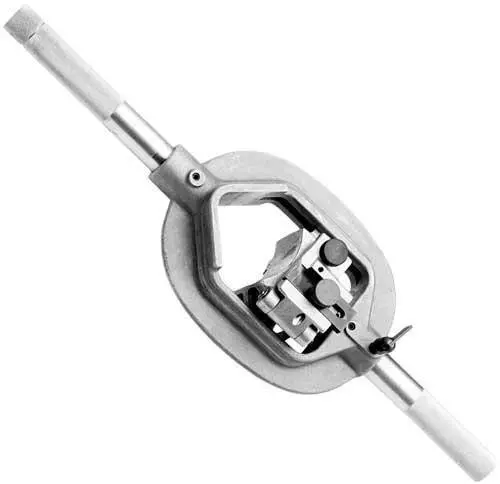

WS 57 & WS 57A Series- 45-115kV Adjustable Jacket, Insulation & Semi-Con End Stripper
Description
- Engineered to strip the outer jacket & insulation from cable diameters from 2.0″ to 4.25″ (50.8 to 108 mm)
- Quick-slide adjustment mechanism easily accommodates various cable diameters
- Adjustable blade depth & angle provides control over the width of the end strip
WS 57A Model:
- Equipped with an adjustable semi-con shaving blade system
Compatibility:
| Cable Compatibility | Primary Distribution Overhead, Primary Distribution Underground | |
| Cable Access | End | |
| Insulation Materials | XLPE, EPR, PE | |
| Min. Voltage | 45 kV | |
| Max. Voltage | 115 kV | |
Specs:
| Material | Aluminum |
| Length | 24″ (610 mm) |
| Weight | 7 lb (3.18 kg) |
Comparison Chart:
Model | Part # | Shaves Semi-Con | Replacement Blade Part # | Min. Cable Outer Diameter | Max. Cable Outer Diameter |
|---|---|---|---|---|---|
WS 57 | 34320 | No | 34327 | 2.0″ | 4.25″ |
WS 57A | 34735 | Yes | 34327 (Jacket), 21715 (Semi-Con) | 2.0″ | 4.25″ |
