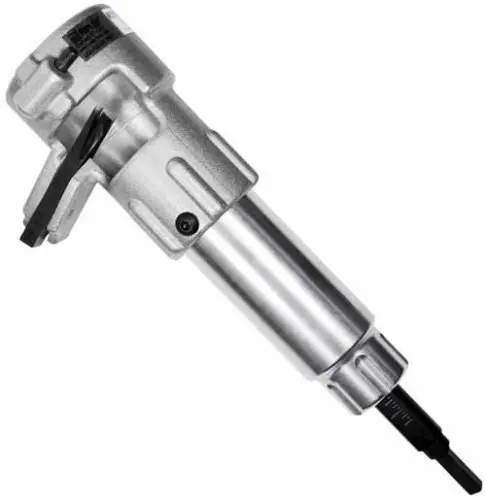

- Rugged, all metal precision tool designed to strip XLPE, polyethylene & EPR insulation on cable diameters from 0.9″ to 2.03″ (22.86 to 51.56 mm) without damaging the conductor
- Guarded cutting blade prevents injury & protects the blade
- Bushings accommodate various insulation & semi-con diameters
WA 1 Adapter:
Provides compatibility with the SW 2 Series Ratchet Wrench
WA 3 Adapter:
Provides strip lengths up to 5.75″ (146.1 mm) & compatibility with the SW 2 Series Ratchet Wrench
Stop Bars (Included with WA 1 & WA 3):
Adjustable stop bar provides accurate preset stripping lengths
Compatibility:
Cable Compatibility: | Primary Distribution Underground |
Cable Access: | End |
Min. Cable Outer Diameter: | 0.9" (22.86 mm) |
Max. Cable Outer Diameter: | 2.03" (51.56 mm) |
Insulation Materials: | XLPE, EPR, PE |
Min. Voltage: | 15 kV |
Max Voltage: | 46 kV |
Insulation Thickness: | Up to 400 mils |
Specifications:
Patent Number(s): |
| |
Shaves Semi-Con: |
| |
Replacement Blade Part #: | 12903 |
Comparison Chart:
Model | Part # | Adjustable Strip Stop Bar | Length | Weight | Strip Length | Drive Attachments |
|---|---|---|---|---|---|---|
WS 6 | 12900 | No | 6.5″ | 1.4 lb | 0.5″ - 2.413″ (12.7 - 54.1 mm) | Manual |
WS 6DA | 12950 | No | 7.5″ | 1.5 lb | 0.5″ - 2.413″ (12.7 - 54.1 mm) | Manual Drill |
WS 6 with WA 1 | 12917 | Yes | 6.5″ | 1.9 lb | 0.5″ - 2.413″ (12.7 - 54.1 mm) | Manual Wrench |
WS 6DA with WA 1 | 12951 | Yes | 7.5″ | 2 lb | 0.5″ - 2.413″ (12.7 - 54.1 mm) | Manual Wrench Drill |
WS 6 with WA3 | 12918 | Yes | 10″ | 2 lb | 0.5″ - 5.75″ (12.7 - 146.1 mm) | Manual Wrench |
WS 6DA with WA 3 | 12952 | Yes | 11″ | 2.1 lb | 0.5″ - 5.75″ (12.7 - 146.1 mm) | Manual Wrench Drill |
