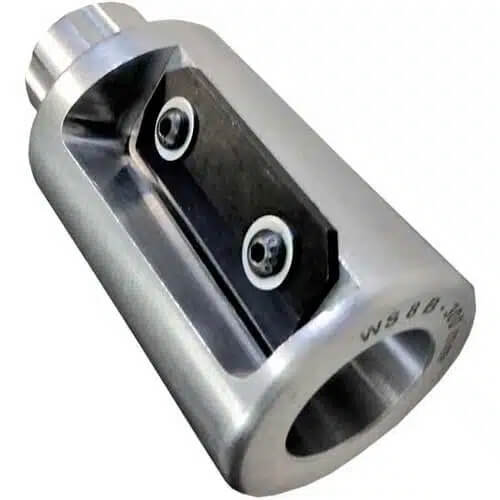

- Designed to quickly taper 5 to 35 kV URD cables in various fixed sizes ranging from #8 AWG to 1,000 kcmil (10 mm² to 500 mm²) without conductor damage
- Suited for XLPE, polyethylene & some EPR insulations
- Compatible with the SW 2 Series Ratchet Wrench for extra turning leverage
Compatibility:
Cable Compatibility: | Primary Distribution Underground |
Cable Access: | End |
Insulation Materials: | XLPE, EPR, PE |
Min. Voltage: | 5 kV |
Max. Voltage: | 35 kV |
Specifications:
Weight: | 1 lb (454 g) |
Length: | 5" (127 mm) |
Comparison Chart:
Model | Part # | Replacement Blade Part # | Insulation Diameter | Cable Size | Shave Length | |
|---|---|---|---|---|---|---|
WS 7 | 10900-XXX | 0.725″ - 1.21″ (18.4 - 30.7 mm) | Select From #8 AWG to 350 kcmil | 2.5″ (63.5 mm) Taper | ||
WS 8 | 11100-XXX |
| Select From 300 kcmil to 1000 kcmil | 2.5″ (63.5 mm) Taper | ||
WS 7A | 16610-XXX | 10919 | 0.725″ - 1.21″ (18.4 - 30.7 mm) | Select From #8 AWG to 350 kcmil | 1.5″ (38 mm) Taper | |
WS 8A | 16620-XXX | 10919 | 1.2″ - 1.9″ (30.5 - 48.3 mm) | Select From 300 kcmil to 1000 kcmil | 1.5″ (38 mm) Taper |
