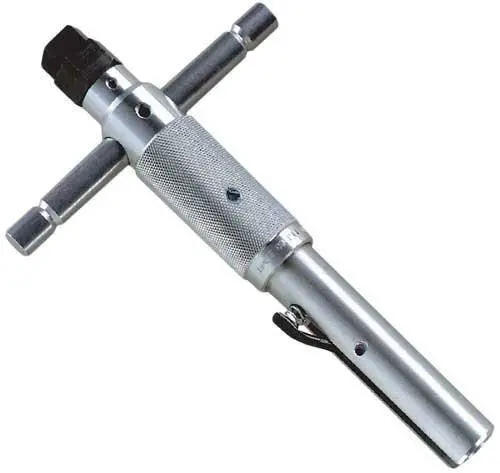

Ripley UtilityTool® PIT 1T Series Load Break Elbow Probe Insertion Tool


Made in USA

Available on backorder | Typical Lead Time: 2-3 weeks

SKU: 35150 Categories: ,


  • For quick & easy insertion of a load break probe into a small interface 15 to 34.5 kV elbow
  • Provides a proper 125 in-lb torque without probe breakage or contamination
  • Adjustable & removable handle converts to a full ″T″ handle or moment arm for tight spaces
  • Equipped with a 1″ (25 mm) steel drive & an adjustable wrench, as well as a 3/8″ (10 mm) square drive socket & standard “Penta” head
  • Quickly remove the load break probe by reversing the tightening action


Torque 125 in-lb
Min. Voltage 15 kV
Max. Voltage 34.5 kV
Compatibility All Load Break Elbows


Patent Number(s) U.S. Patent No. 5,605,082
Length 9.375″ (238.1 mm)
Weight 1 lb 4 oz (568 g)
