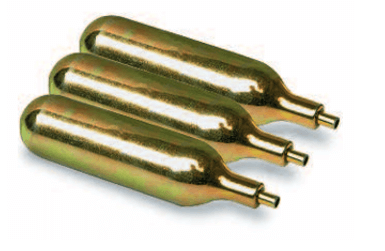

E7512-0160 CO2 Gas Cylinders for RDSS-IT-16 Tool
Replacement COâ‚‚ gas cylinders for the Raychem RDSS duct-sealing system inflation tool (RDSS-IT-16). Supports efficient, safe inflation of the sealing bag assembly in power utility ducts, vaults and conduits.
Specifications:
Attribute | Value |
|---|---|
Manufacturer: | TE Connectivity (Raychem) |
Part Number: | E7512-0160 |
Product Type: | CO₂ Gas Cylinder – accessory for RDSS inflation tool |
Compatible With: | RDSS inflation tool (RDSS-IT-16) |
Typical Pack Quantity: | 1 box contains (10) gas cylinders. |
Application: | Inflation of Raychem RDSS duct-sealing system. Each gas cylinder inflates approx. (5) pcs of RDSS-100 duct seals. |
Additional RDSS Installation Tools
RDSS duct seals can be installed with a variety of inflation tools having the capability of inflating RDSS to 45±3 psi (3 bar) of pressure . The tools TE Connectivity offers are summarized in the table below . The tool will only accept the 16-gr CO2 gas cylinders (E7512-0160)
Catalog Number | Description | Standard Package Quantity |
|---|---|---|
Inflation tool designed with an ON/OFF switch and an automatic pressure-monitoring system. The required CO2 gas cylinders (E7512-0160) must be ordered separately | 1 tool/box | |
E7512-0160 | 16-gr CO2 gas cylinders for the RDSS-IT-16 tool. Each gas cylinder inflates approximately four RDSS-100 duct seals | 10 cylinders/box |
RDSS-IG-SR-AS | Inflation tool designed for use with customer’s own source of nitrogen or compressed air. Features a pressure gauge, automatic shutoff, VGF valve connection, and two alternate connections for plastic or rubber hoses | 1 tool/box |
Tube snap assembly. Spare part for RDSS-IT-16 inflation tool | 1 each/box | |
E7512-0240 | Spare pressure gauge assembly for RDSS-IT-16 inflation tool | 1 each/box |
E7512-0260 | Spare delivery pipe for RDSS-IT-16 inflation tool | 1 each box |
S-1278-3x61x7620 | RDSS sealant roll | (1) 25-ft roll/box |
For use with the RDSS-150 in duct 5.25" or larger with cable/cable bundles less than 2.4"(60mm) in diameter | 1 each/box | |
Adapter for ducts 6.5-8.0"(165-210mm) diameter | 4 each/box | |
RDSS-LUBE for installation of RDSS. | 25 each/box |
