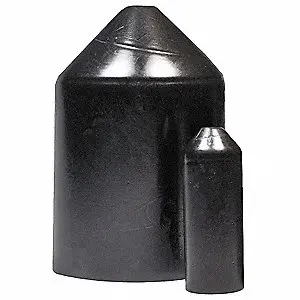

End Sealing Caps for 1/C Power Cable (1000 V)
- Shrink and compress a hot-melt adhesive on the cable jacket, forming a secure environmental seal
- Fits easily over the cable end and shrinks in seconds, leaving a compact, rugged end seal
- Qualified to ANSI C119.1-1986 and rated to ICEA electrical withstand test for 1000 volts
- For use on standard poly- or elastomeric insulated/jacketed cables or lead-jacketed cables, which may include aluminum or steel armoring
Use as a live end seal to 1000 volts. Use as an end seal for storage and pulling of a de-energized cable.
Selection Information: dimensions in inches (millimeters)
Part # | ESC-7/A |
Conductor size (AWG/kcmil) | |
Use range (min.-max.) | 3.02-4.25 (77-108mm) |
General use range (min.-max.) | 2.95-4.50 (75-114mm) |
Length as supplied | 5.4 |
