A Closed-Cell Foam Duct Sealing System for Conduit Sizes up to 2″/50mm
ZipSeal™ Duct Sealant is a practical and efficient way to seal small conduits and communication innerducts. The revolutionary Zip-Disc™ insert traps and keeps the foaming liquid in its open-cell (center) area.
The unique two-part foam installs quickly and effectively. The innovative design of the Zip-Disc™ insert allows for horizontal and vertical installation with minimal drippage. Cured foam blocks can be removed and re-entered relatively quickly if necessary.
ZipSeal™ Duct Sealant holds up to 10 feet (3.0 m) water-head pressure to keep gases and rodents out of conduits.

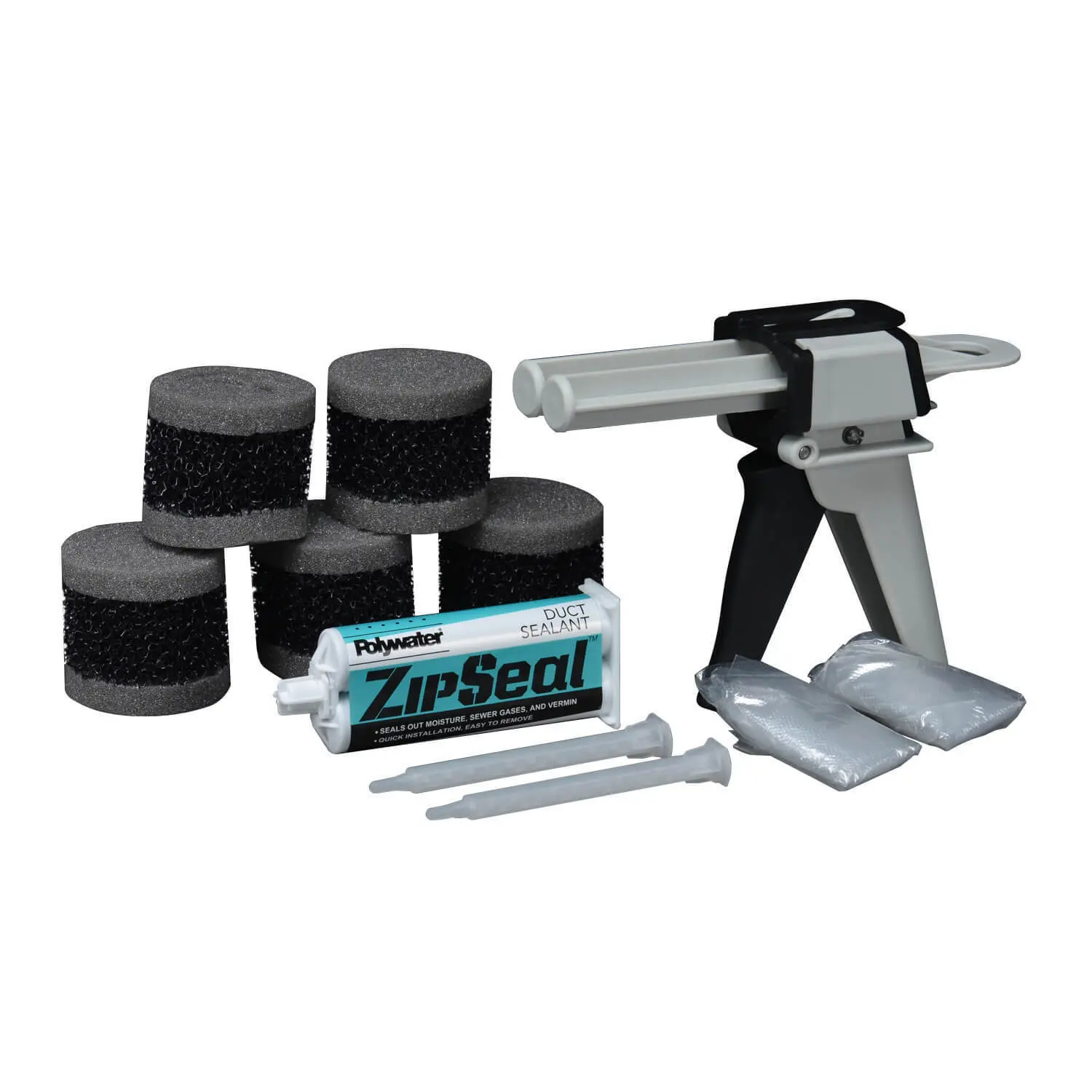

- ZipSeal comes in a side-by-side 50 ml cartridge with a 1:1 mixing ratio
- Each kit comes with all the components required for a quick, yet strong duct seal, including the unique Zip-Disc for fast and easy application.
- A TOOL-50-11 is needed to apply the ZipSeal 2-part foam.
Specifications and Applications:
For Ducts and Conduits: A fast, flexible, efficient, code-compliant way of sealing duct to protect outside plant.
Preferred Sealant: Easter to install than duct putty, and won’t sag over time.
Water Head: Holds up to 10 feet (3.0 m) water head pressure.
Seals Quickly: Sealant will harden in 5 to 7 minutes.
Unique Zip-Disc: The Zip-Disc allows for effective horizontal or vertical installations.
Multi-Use Cartridge: May be resealed for future use.
Compliant: Complies with TIA-758-B Standard 220.127.116.11.8, 18.104.22.168, and 22.214.171.124.
