PGKD Modular Seal With Visual Installation Indicator
“Did I install it correctly?”, is the most asked question when using a “Linkseal®” style product. The PGKD is the only product on the market that gives you a definitive answer along with confidence. Its unique integrated installation control visually indicates when the seal is secure. Crews, engineers, and owners get the added peace of mind and security that the PGKD has been installed properly. Gas, water, sewer, and electrical crews will appreciate having the nuts molded into the pressure plate, a design that greatly reduces the risk of lost parts
• Integrated, visual installation control—no torque wrench required
• No retightening required
• Nuts molded into the pressure plates—no loose parts
• Gastight and watertight up to 72.50 PSI (5 bar)
• All metal parts made of high-quality stainless steel V4A (AISI 316L)
• Available in EPDM or NBR rubber
PGKD vs. Competitors:
Polywater│Hauff Technik PGKD Modular Seal | Competitive Products | |
|---|---|---|
Cost | $$ | $ |
Materials | 316 Stainless Steel for durability even in corrosive environments | Galvanized Steel is prone to corrosion in specific area. |
Ease of Use | Nuts are molded directly into the pressure plate, no loose parts to lose | Bolts and nuts are loose and can easily be lost. |
Labor Saving | Retightening of bolts is not recommended | Retightening of bolts within 24 hours is recommended; more labor time. |
Watertight | Bolts are only threaded halfway down the bolt so tracking of water through the seal can't happen | Bolts are threaded end to end which can cause a tracking path for water to follow through the seal |
Water Head Pressure | Holds up to 72.5 PSI | Only holds up to 20 PSI |
Warranty | 10 year | ? |

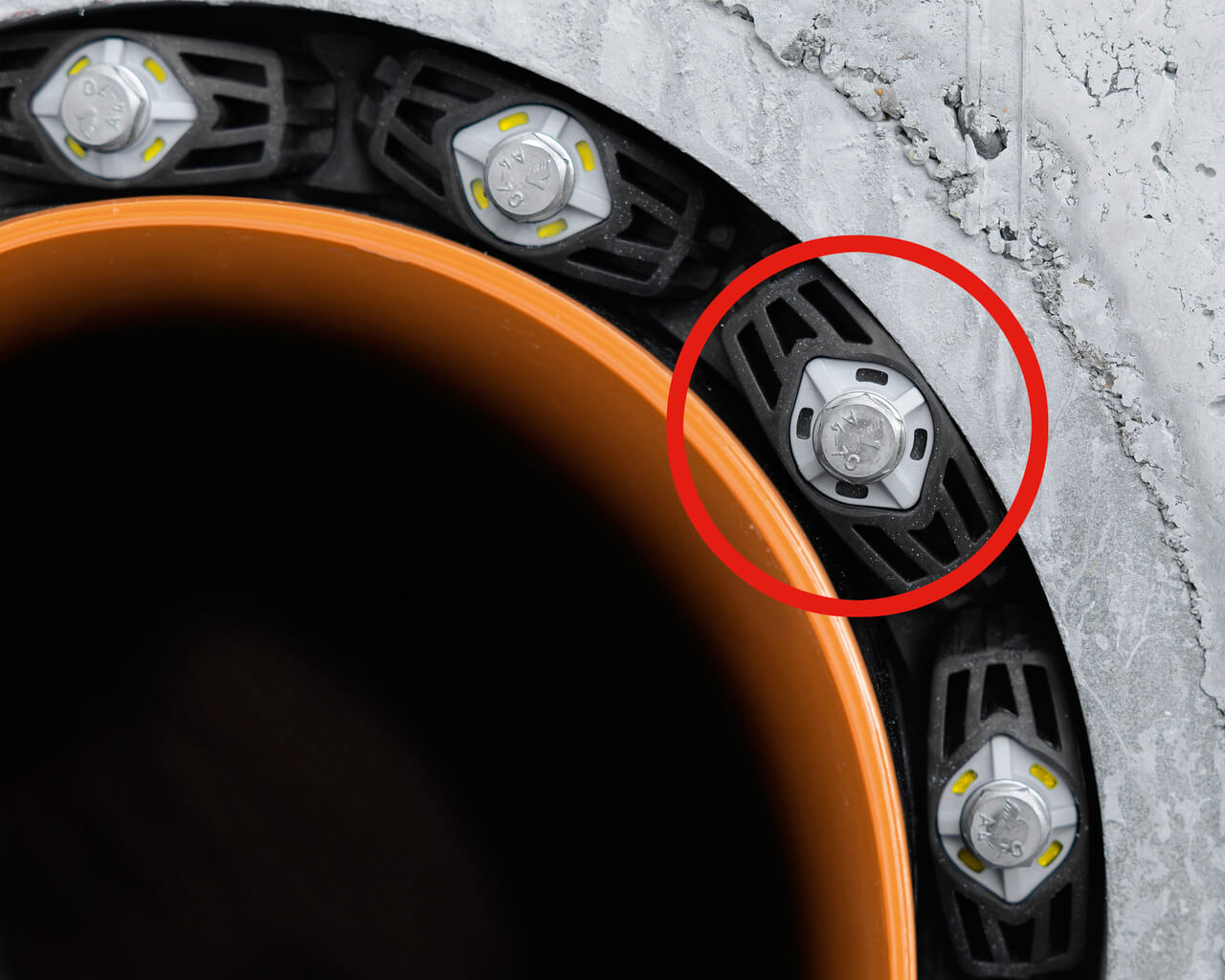

Proper Torque Indicator | Most importantly – a patented indicator is incorporated into the seal. When the seal is torqued properly, the windows in the pressure plates change to yellow; a visual indicator that the seal is installed correctly without requiring a torque wrench. The most asked question from field crews is, “Did I install it correctly?” Now they know! | Must use a torque wrench and it is recommended to retighten 24 hours later to ensure proper sealing. More labor time and guess work installing this system |

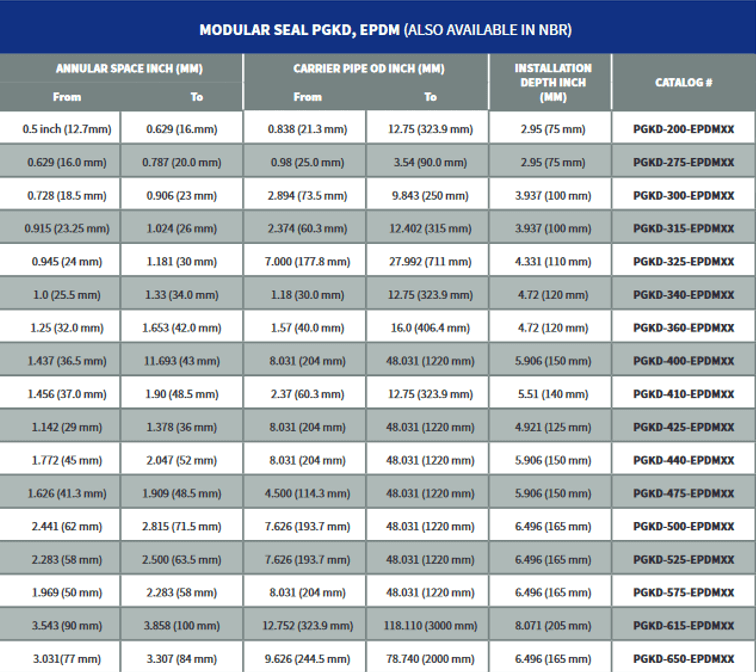

Selection Chart:
X= Number of Links
*The complete catalog number id derived from the number of links needed to seal the annual space.
