Utility Solutions GNDS-001-LEADSET Overhead Grounds-Trainer™ Simulator Set of Leads

$186.00

Need it Sooner? Lead Time: 1-2 weeks

SKU: GNDS-001-LEADSET Categories: , ,

GNDS-001-LEADSET

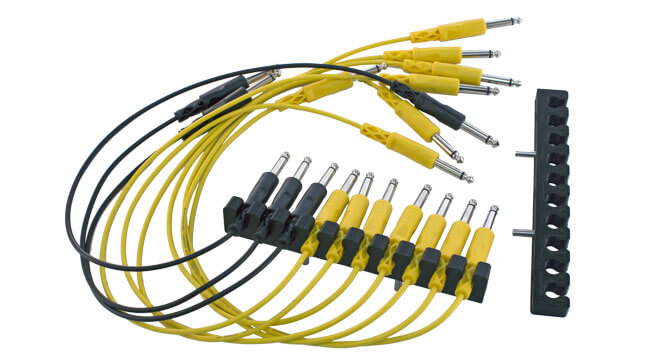

  • OVERHEAD GROUNDS-TRAINER™ SIMULATOR SET OF LEADS- EXTRA SET*
    *GNDS-001 sold separately

The Overhead Grounds-Trainer™ provides an immersive learning experience for complex concepts. The simulator also allows for recreating field scenarios using interactive disconnect switches and source buttons.


Demonstrate complex concepts:

  • Distribution of Fault Currents
  • Ground Potential Rise
  • Step & Touch Potential
  • Soil Resistivity
  • Resistance of Personal Protective Ground Sets (PPG)

Real world variables:

  • System Voltages
  • PPG & Connection Quality
  • Soil Type & Temperature
  • Broken Conductors
  • Induction
  • Backfeed

Configure multiple grounding styles and work methods:

  • Shunt vs Umbrella Configurations
  • Single Point Grounding
  • Bracket Grounding
  • Equipotential Zone Grounding (EPZ)
  • Equipment Grounding
  • Parallel Grounds

Ordering Information:

Item Number

Description

GNDS-001-H

OVERHEAD GROUNDS-TRAINER™ SIMULATOR WITH HARD CASE

GNDS-001-S

OVERHEAD GROUNDS-TRAINER™ SIMULATOR WITH SOFT CASE

GNDS-001-LEADSET

OVERHEAD GROUNDS-TRAINER™ SIMULATOR SET OF LEADS

Dimensions 5 in
