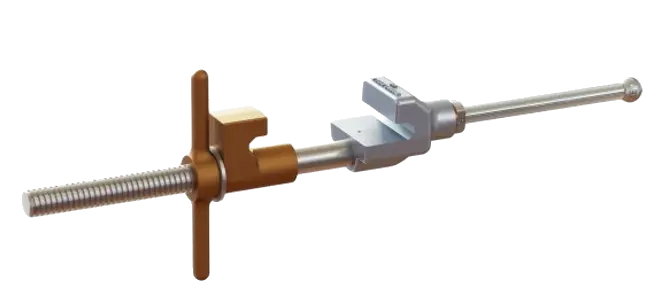

5-10” I BEAM CLAMP, WITH 1-1/2” GROUNDING STUD
PART # |
|
|---|---|
Material | BODY: ALUMINUM 356-T6, JAW: 878 SI BRONZE |
Range | 5”-10” I-BEAM |
Rating | MAX: 55 kA @ 15 CYCLES, X/R=30 |
Continuous Current Rating | 800A |
Screw Type | STAINLESS STEEL ACME W/ T-HANDLE |
Screw Size | 1”-8 UNC |
Max Torque | 400 IN/LBS. |
Ground Stud | 1” DIA BALL STUD X 7” SHANK PLATED COPPER |
Jaw Type | SMOOTH |
Weight | 6 LBS |
