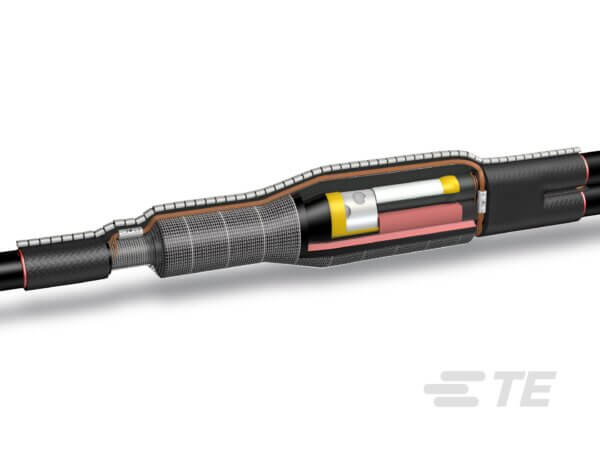

Wye Tap Splice (15kV) For 1/C POLY-POLY, PILC-PILC, AND PILC-POLY CABLE
TE Connectivity’s (TE) Raychem HVSY-1520S series tap splices are for use on copper tape, wire shield, lead sheath, and UniShield cables.
TE’s HVSY series is designed to seal against moisture ingress by including a branch clip and the heavy-duty MBSM wraparound sleeve
Key Features:
- Internal moisture seals provide a redundant seal against water intrusion
- Splices accept a wide range of main and tap cable sizes
- Qualified to IEEE 404
- Compact shape simplifies cable training
PRODUCT SELECTION INFORMATION: DIMENSIONS IN INCHES (MM)
(15 kV Polymeric Wye, for use with Burndy YSH Crimp Connectors for Copper Conductors only)
Part # | Voltage | POLY Conductor Size (AWG/kcmil)- Main | POLY Conductor Size (AWG/kcmil)- Tap | Insulation Diameter (min.-max.)- Main | Insulation Diameter (min.-max.)- Tap | Connector Length (max) | Kit Installed Length | Required Installation Space | Burndy Connector |
|---|---|---|---|---|---|---|---|---|---|
HVSY-1523S | 15 kV | 250 - 500 | 4/0 - 500 | 0.85 - 1.25 (22 - 32) | 0.85 - 1.25 (22 - 32) | 3.5 (90) | 30 (750) | 45 (1125) | YSH-3434 |
