TE Connectivity Raychem HVS-2583E In-Line Heat Shrink Splice

$1,253.40

Need it Sooner? Lead Time: In Stock, Ready to Ship

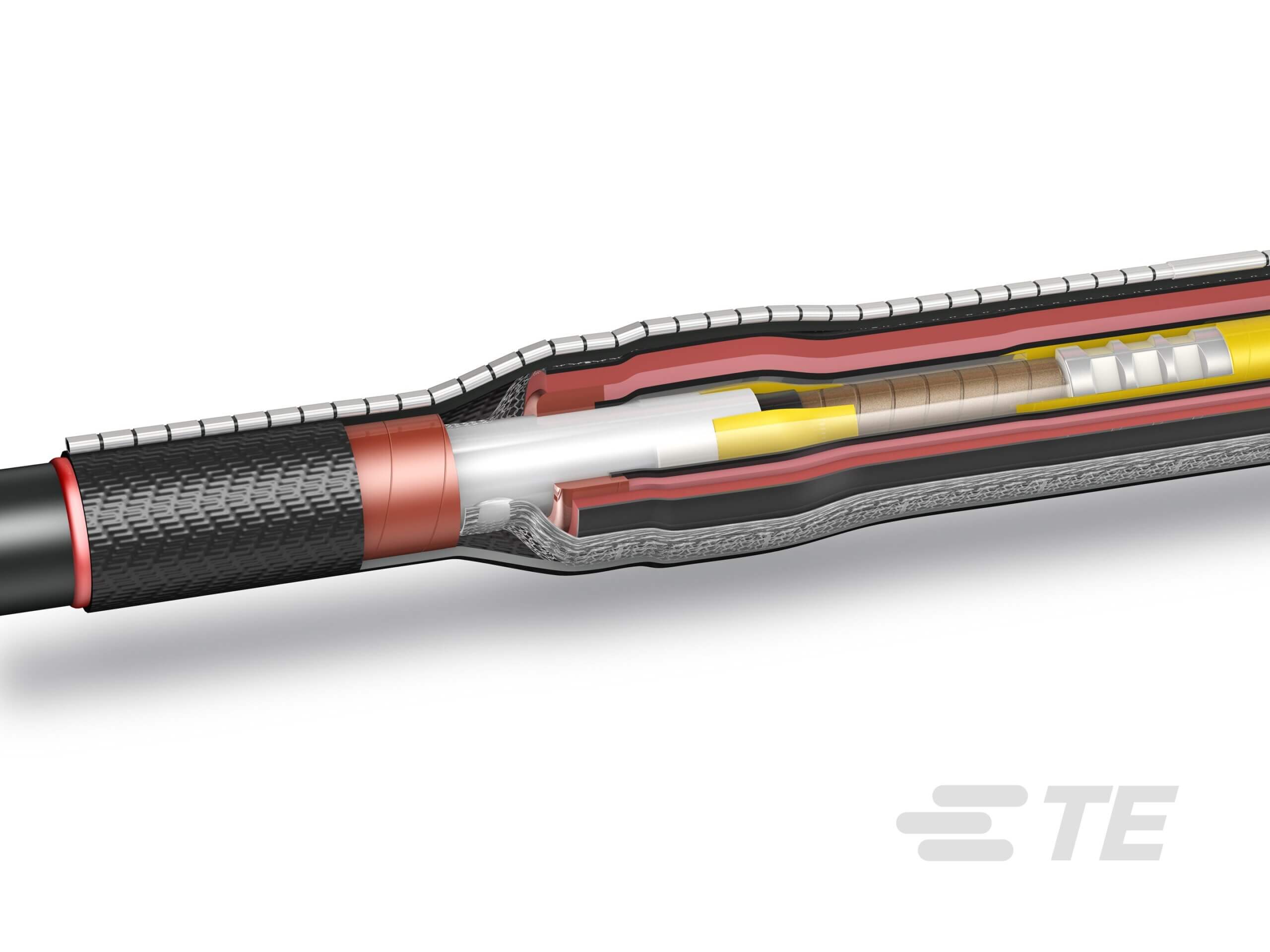

In-Line Heat Shrink Transition Splice (15kV)

Key Features:

  • Tested to the electrical and load cycling requirements of IEEE 404
  • PILC splices utilize highly effective oil-stop systems

PRODUCT SELECTION INFORMATION: DIMENSIONS IN INCHES (MM)

Part #

Voltage

PILC/POLY Conductor Size (AWG/kcmil)

Insulation Diameter (min. - max.)-

PILC

Insulation Diameter (min. - max.)-

POLY

Connector Dimension-

Both Cables OD

Connector Dimension- PILC/PILC Length

Connector Dimension-

PILC/ POLY Length

Kit Installed Length

Required Installation Space

HVS-2583E

25 kV

350-500

1.15 - 1.45 (29-37)

1.15 - 1.50 (29 - 38)

1.35 (34)

5.0 (127)

8.0 (203)

40 (1016)

58 (1473)

Weight 7.8 lbs
Dimensions 50 × 5 × 5 in
