HVES-3-1594 Medium Voltage Heat Shrink Live End Seal

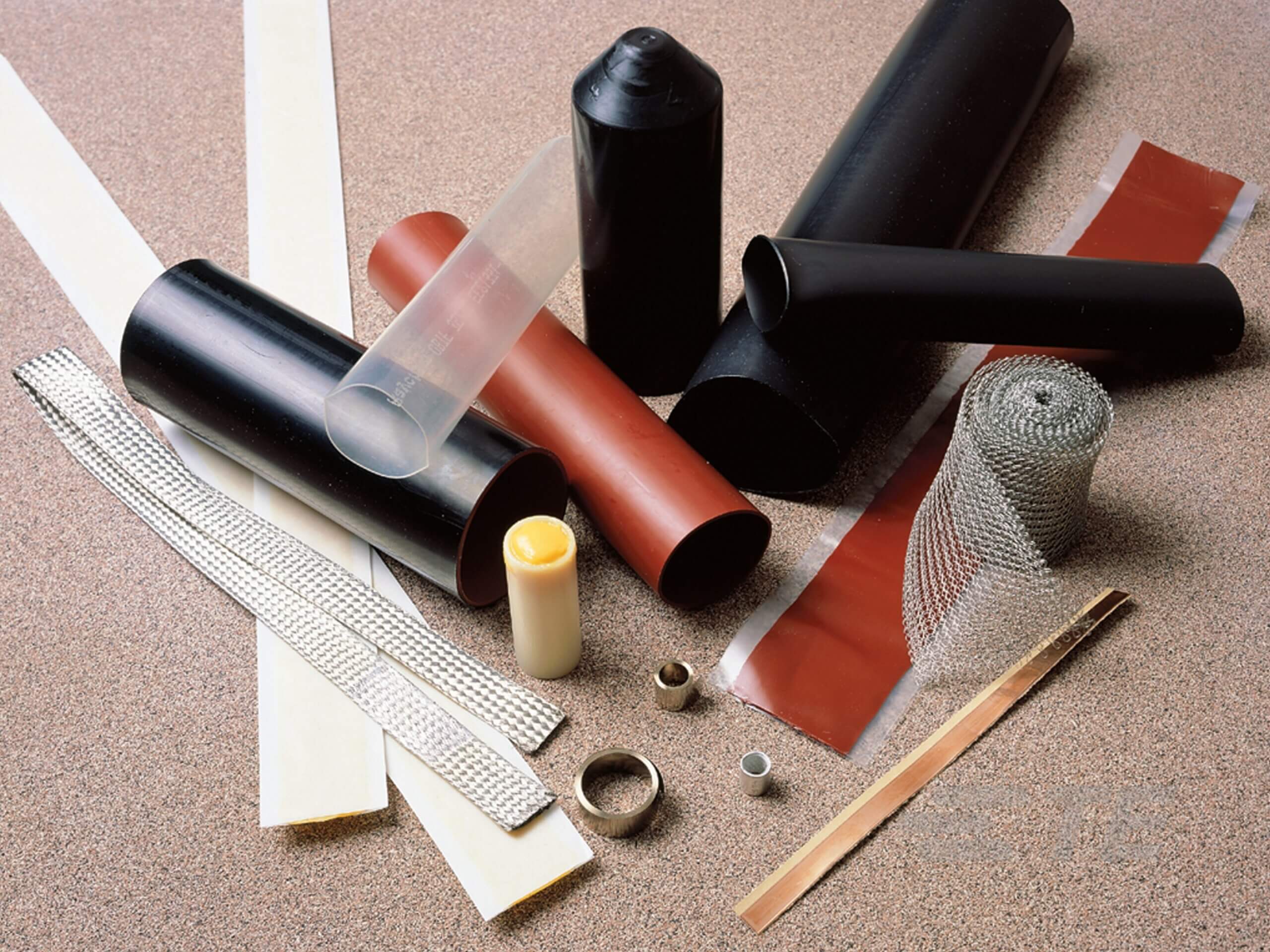

TE Connectivity’s (TE) Raychem HVES heat-shrinkable live end seals insulate and seal the ends of polymeric and PILC cables. These kits consist of heat-shrinkable tubings and a high-dielectric strength, polymeric plug, which overlap the conductor to provide excellent insulation. The outer adhesive-lined rejacketing sleeve is designed to provide a positive environmental seal.
Once the HVES kit is installed, the cable can be re-energized. Typical applications include the live ending of spare cables for future use, isolating a failed cable length, and sectionalizing a cable circuit during system maintenance and repair, expansion, or testing.
Key Features:
- Provides excellent insulation
- For use on polymeric and PILC cables
PRODUCT SELECTION INFORMATION: DIMENSIONS IN INCHES (MM)

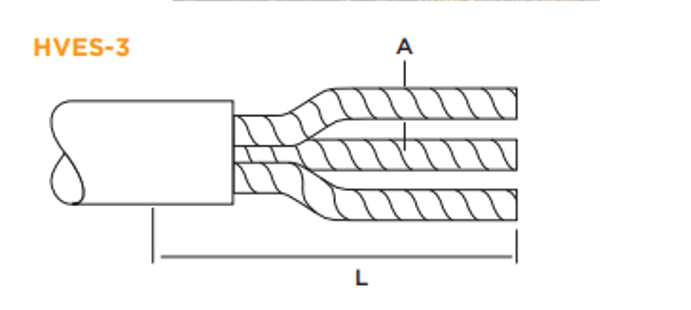

See table below for measurements for "A" and "L"Part # | Voltage | PILC/Poly Conductor Size (AWG/kcmil) | Insulation Diameter (min - max)- PILC (A) | Insulation Diameter (min - max)- POLY (A) | Kit Installed Length (L) |
|---|---|---|---|---|---|
HVES-3-1594 | 15 kV | 750-1000 | 1.15 - 1.75 (29 - 44) | 27 (686) |
