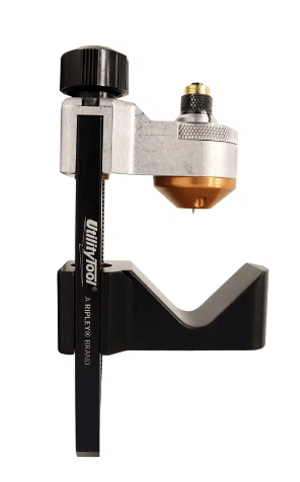

Introducing the new US15 PRO Large Format Slitting Tool, capable of performing slit, ring, and spiral cuts on cable diameters from 10 to 60 mm. Equipped with a high-grade steel blade, the versatile tool provides fast, safe, and precise jacket removal from both hard and soft insulated cables without damaging the underlying layers.
- Equipped with safe, recessed blade to prevent potential injury & blade damage
- Compatible with various insulated materials such as PE, XLPE, PVC, EPR, silicon rubber, EPDM and TGGT
- Easily adjust the blade position to perform ring, spiral & longitudinal cuts
- Quickly adjusts to suit hard & soft insulated cables with 0.39″ to 2.36″ (10 mm – 60 mm) diameter
- Blade depth knob adjusts up to 0.216″ (5.5 mm) in increments of 0.002″ (0.05 mm) & features a convenient inch or metric scale for guaranteed precision
- Replaceable, machined & ground tool steel blade
- Reinforced diameter adjustment jaw is durable & travels on a threaded rod to provide precise stability between the blade & jacket
Compatibility:
Cable Access: | Mid-Span, End |
Min. Cable Outer Diameter: | 0.39" (10 mm) |
Max. Cable Outer Diameter: | 2.36" (60 mm) |
Jacket Materials: | PE, XLPE, PVC, EPR, Silicon Rubber, EPDM, TGGT, Sealpic® |
Adjustable Blade Depth: | 0.216" (5.5 mm) |
Specifications:
Material: | Impact-Resistant Polymer |
Handles: | Ergonomic |
Length: | 5.125″ (130 mm) |
Weight: | 8.82 oz (250 g) |
Replacement Blade Part #: | US15-7501 |
Cutting Type: | Radial, Spiral, Longitudinal |
Comparison Chart:
Model | Part # | Scale | Scale Increments |
US15 PRO Large Slitting Tool (Metric Scale) | US15-7010 | Metric | 0.05 mm |
US15 PRO Large Slitting Tool (Inch Scale) | US15-7011 | Inch | 0.002″ |
