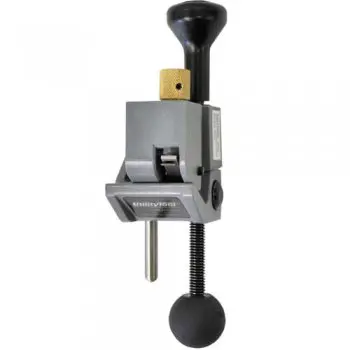

Ripley UtilityTool® US07 Adjustable Cable Stripper

$192.27

Available on backorder | Lead Time: 2-3 weeks

SKU: US07-7000 Categories: , ,

The US07 Adjustable Cable Stripper  quickly and easily end strips or midspan strips cable insulation with no conductor damage on #8 to 1000 kcmil secondary cables. The tool utilizes a size adjustment clamping system to swiftly adjust and lock onto the insulation. Its compact, low friction, thermoplastic, impact-resistant polymer v-jaw and body provides a stable and precise clamping platform in any space.

  • Equipped with safe, recessed blade to prevent potential injury & blade damage
  • Quickly adjusts to suit THHN, XHHW & USE secondary cables with 0.3″ to 1.375″ (7.6 mm to 35 mm) cable diameters, eliminating the need for bushings
  • Easily adjusts with detent actuated knob & fine adjustment knob to match insulation thickness for fast stripping without conductor damage
  • Features a replaceable, machined & ground tool steel blade
  • Combines the end & mid-span strip performance of the UtilityTool® WS 71 & WS 72 with added features, stability & cable sizes
  • Durable bronze bushings provides longevity

COMPATIBILITY

Cable Compatibility

Secondary Distribution

Color

Gray

Cable Access

Mid-Span, End

Min. Cable Outer Diameter

0.3" (7.6 mm)

Max. Cable Outer Diameter

1.375" (35 mm)

Jacket Materials

THHN, XHHW, USE

Min. Voltage

600V

Max. Voltage

1 kV

Insulation Thickness

45-125 mils

SPECIFICATIONS

Material

Impact-Resistant Polymer

Handles

Ergonomic

Replacement Blade Part #

US07-7500

Chamfer Angle

30°
