Adjustable mid-Span and end stripping on primary and secondary utility cables

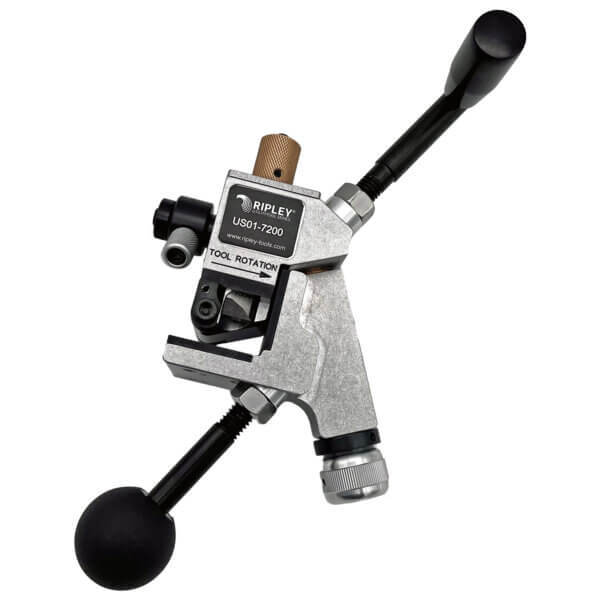

Introducing the US01, the industry’s most versatile, reliable, and accurate adjustable tool designed specifically for mid-span and end stripping on primary and secondary utility cables. This heavy-duty tool is engineered to provide maximum efficiency and safety, making it an essential addition to any cable jointer’s toolkit.
- Adjustable from 0.5” to 2.5” cable diameter, the US01 handles a wide range of insulation removal tasks on cables rated from 600V to 35kV
- Heavy-duty tool designed for easy removal of jacket and insulation types including XLPE, PE, and EPR
- Removable handles allow stripping in locations where space is limited
- Easy-to-change universal single blade with a convenient spare blade integrated into the tool, making field replacements a breeze
- Adjustable blade depth for tailored insulation removal
- Insulation chip deflector

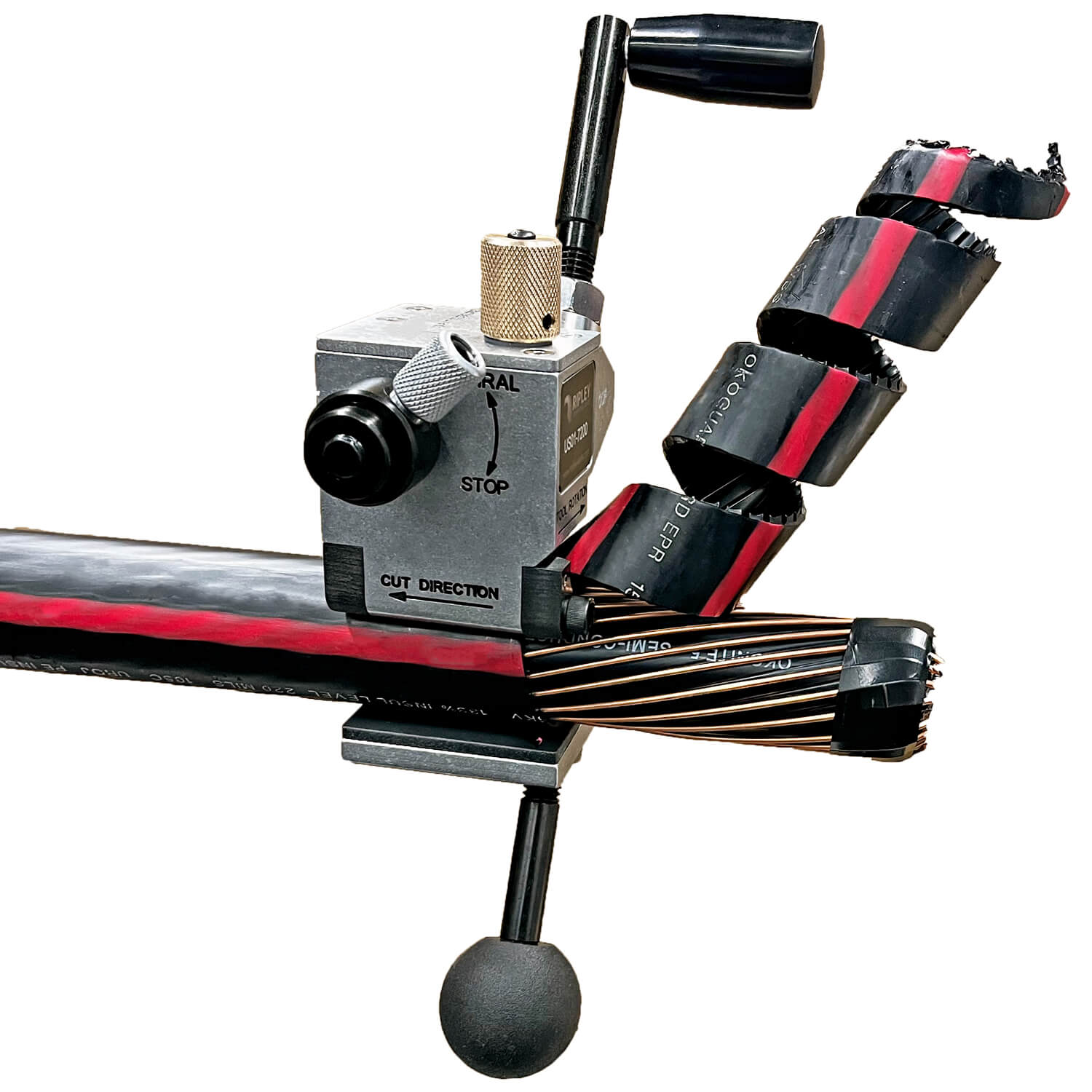

- User-friendly selector switch to quickly move between ring and spiral cut settings
- Reduced tool body weight from original design for ease of operation and minimized fatigue during prolonged use
- Eliminates the need for traditional stripping knives, reducing the risk of cuts or lacerations
Spare Blades:
Compatibility:
Cable Compatibility: | Primary Distribution Overhead, Primary Distribution Underground, Secondary Distribution, Tree Wire, Spacer Cables |
Cable Access: | Mid-Span, End |
Min. Cable Outer Diameter: | 0.5″ (12.7 mm) |
Max. Cable Outer Diameter: | 2.5″ (63.5 mm) |
Insulation Thickness: | 0.060" (1.52 mm) - 0.420" (10.6 mm) |
Min. Voltage: | 600 V |
Max. Voltage: | 35 kV |
Specifications:
Material: | Aluminum |
Dimensions: | 11" (279.4 mm) x 5.3" (134.6 mm) x 2.7" (68.5 mm) |
Weight: | 2.9 lb (1315.4 g) |
Comparison Chart:
Model | Part # | Item Type | Handles | Replacement Blade Part # |
|---|---|---|---|---|
US01 Standard | US01-7200 | Tool w/ Handles | 1 Rotating Handle & 1 Ball Handle | |
US01 w/ Stop Bar | US01-7205 | Tool w/ Handles | 1 Rotating Handle & 1 Ball Handle |
