Richards 15/25/28kV 900A (P925BE) Bushing Extender provides an insulated, fully shielded connection between an apparatus bushing and another 15/25/28kV Deadbreak interface connection.
Deadbreak Bushing Extenders can be used for spacing purposes as well as for accommodating other 15/25/28kV Deadbreak accessories.
Features:
- 100% EPDM Composition
- Injection Molded & Peroxide-Cured
- Fully-Shielded/Deadfront
- Submersible
- Designed, Molded, and Tested in the USA
Production Testing:
IEEE requires a Partial Discharge test and choice between AC withstand and Impulse.
Richards runs 3/3 tests on all Medium Voltage products governed by IEEE 386 .
100% Routine Electrical Test:
- Partial Discharge
- AC Withstand
- Impulse Withstand

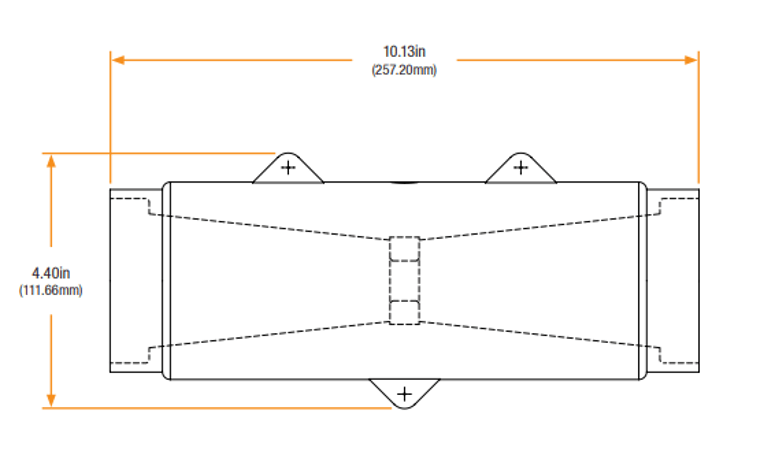

Basic Dimensions:

Detail View:

Product Ratings:
