Richards Manufacturing P635IC-200 35kV 200kV BIL Deadbreak Insulating Cap

35kV 200kV BIL Deadbreak Insulating Cap

The Richards P635IC 35kV Deadbreak Insulating Cap provides a means to insulate 600A 35kV Deadbreak interfaces (IEEE 386, Interface 13). The Deadbreak Cap is often utilized to insulate unused positions on Deadbreak Junctions or to insulate an R-Stack, Connecting Plug or Apparatus Bushing interface.

The Deadbreak Insulating Cap is molded with an integral threaded stud and supplied with a factory installed 48″ #12
AWG tinned copper ground wire.

Features:

  • 100% EPDM Composition
  • Injection Molded & Peroxide-Cured
  • Made in the USA
  • Fully-Shielded/Deadfront
  • Submersible

Basic Dimensions:

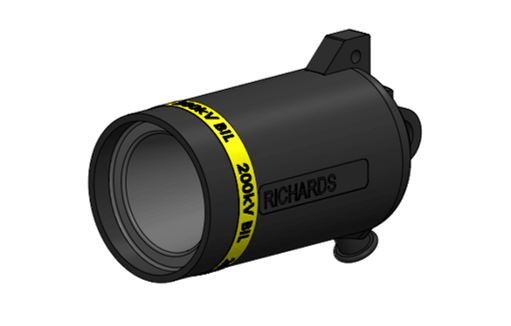

Detailed View:

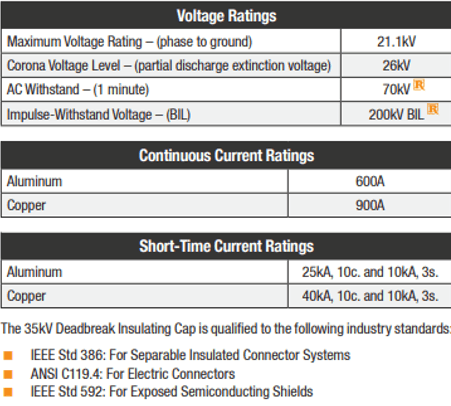

Product Ratings:
