  • Richards Manufacturing P625JIC Joint Insulating Cap

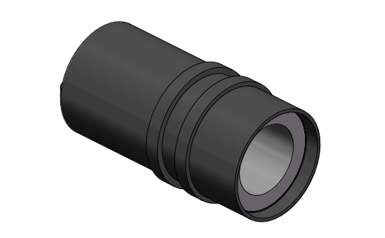

Richards Manufacturing P625JIC Joint Insulating Cap

$220.00

Need it Sooner? Lead Time: In Stock, Ready to Ship.

SKU: P625JIC Categories: ,

15/25/28kV Joint Insulating Cap

Richards 15/25/28kV Insulating Cap (P625JIC) provides a means for shielding, sealing and insulating 600A Disconnectable Joint Bus interfaces that are not in use.

The JIC is supplied with a stainless steel bail which secures the Insulating Cap to the Disconnectable Joint Bus.

Features:

  • Injection Molded & Peroxide-Cured EPDM Rubber
  • Fully-Shielded/Deadfront
  • Compatible with sleeve restraints
  • Reusable
  • Modular design< Submersible< Designed, Molded, and Tested in the USA

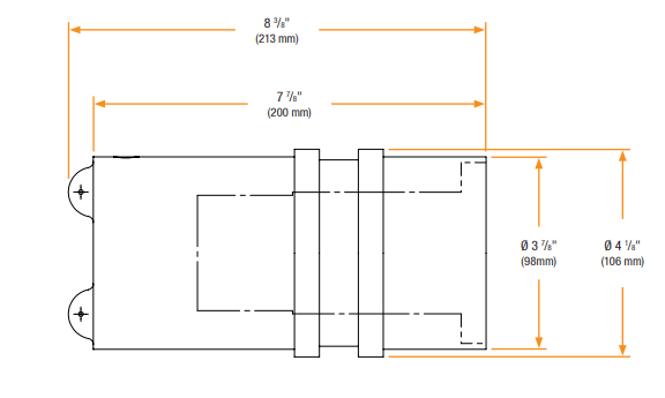

Basic Dimensions:

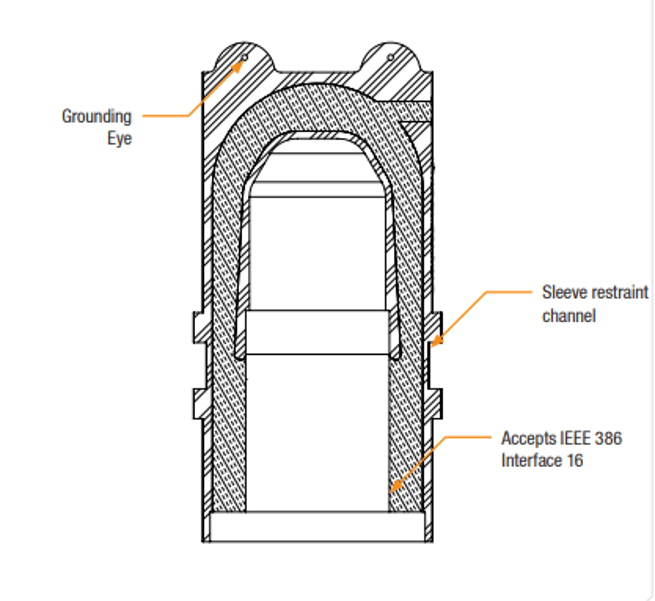

Detailed View:

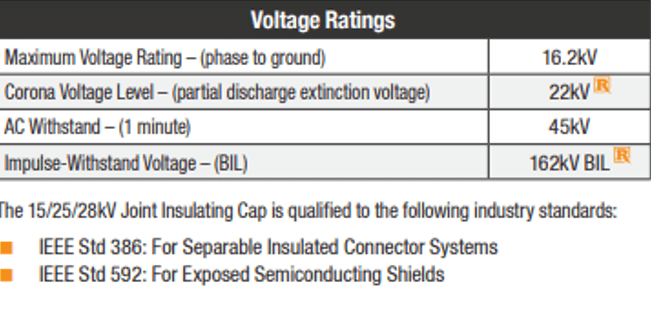

Product Ratings:

Weight 4 lbs
Dimensions 8 × 15 × 5 in
