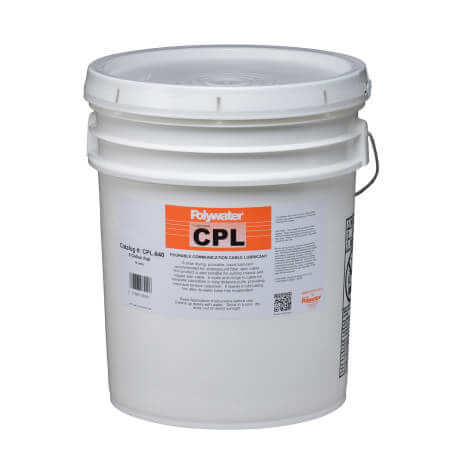

CPL-640 includes: |
|---|
A Pourable Cable Pulling Lubricant That Is Compatible With All Cable Jackets In The Communications Industry.
Polywater® CPL Lubricant offers superior combustion resistance and an inherently low coefficient of friction, including proven compatibility with all cable and conduit materials. Polywater CPL should be specified for installations of LSZH/LSHF cable in conduits and where fire propagation is a concern.
Specifications and Applications:
- Lubricity: LDPE-, MDPE-, and HDPE-jacketed cable on HDPE and PVC innerduct at 200 lbs./ . (2.91 kN/m) sidewall force, coe icient of kinetic friction < 0.12.
- Percent Non-Volatile Solids: 4.5% to 5.5%.
- Appearance: Opaque-white stringy liquid. Pourable viscosity (1,000-3,000 cps @ 10 rpm).
- pH: Neutral (6.5-7.5).
- Cable Compatibility: No deleterious effects on physical or electrical properties of cable jackets.
- Polyethylene Stress Cracking: No stress cracking on LDPE cable jackets when tested by ASTM D1693
Product/Package Notes:
- Meets Telcordia GR-356-CORE; Generic Requirements for Optical Cable Innerduct, Associated Conduit, and Accessories.
- Offers low coefficients of friction on a wide range of cable jacket and duct materials for superior friction reduction.
- Polywater CPL is safe for the aquatic environment and meets California regulation CCR 22.
- Polywater CPL is suitable for use on PE communication cable jackets.
- Polywater CPL comes in two grades: Regular Grade CPL and Winter Grade WCPL (for cold weather use in temperatures as low as -20°F (-30°C)). The packages (with the exception of the drum) are all designed to allow the lubricant to be poured into upturned innerduct or a feeder tube.
Polywater Lubricants FAQ
A cable pulling lubricant is a specialty product designed to reduce the friction of a cable while pulling into a conduit. The friction reduction lowers the force required to pull the cable into the conduit. This reduces the tension (tensile stress) on the cable during installation.
Pulling lubricants lower tension on cable as it is installed, providing numerous benefits. Lower pulling forces are less likely to physically damage the cable. Lower sidewall pressure, which is the normal pressure on a cable going around a bend can improve installation performance and life. Additionally, lower tension means less equipment wear, improved operational safety, and longer uninterrupted cable runs (fewer splices). These combined benefits result in an improved and lower-cost cable installation.
For short, straight pulls with lightweight cable, a lubricant may not be needed. For longer pulls, pulls with a greater total bend angle, or pulls with heavy cable, the use of an effective lubricant can significantly lower tension and sidewall pressure.
Equations based on the physics of the pull can provide an estimate of tension and sidewall pressure. The primary inputs into the equations are cable weight, conduit system detail (run lengths and bend location and angle), and the friction coefficient of the cable jacket against the conduit wall. The equations calculate pulling tension and sidewall pressure as the cable moves through the conduit.
The friction coefficient (or coefficient of friction) is a dimensionless number that is a measure of the frictional resistance to movement of the cable against the conduit wall. A pulling force is required to overcome this frictional force and move the cable. For example, if a 10 lb (4.5 kg) block sitting on a table took 5 lbs (2.25 kgs) of force to move it across the table, the coefficient of friction is the ratio of the pulling force to the gravitational force, or 5/10 (2.25/4.5), so the friction coefficient = 0.5. For plastic and rubber cable jackets against metal or plastic conduit, typical friction coefficients can vary from 0.1 to 1.5.
In horizontal straight sections of duct, the pulling tension is directly proportional to the coefficient of friction (COF). So, a reduction of 50% in the COF means a reduction of 50% in the pulling tension. However, in bend sections, the primary normal force comes from the pulling force itself, and the COF is in an exponential factor that multiplies the incoming tension. A reduction of 50% in the COF can mean a reduction of 90% in the tension in 180 degrees of bend.
In cable pulling, this coefficient of friction depends not only on the lubricant, but also the cable jacket type and conduit type. All three must be known to determine a meaningful COF. While there is no standard friction measurement method that applies to cable in conduit, our methods at Polywater® measure real cable friction on standard conduit types. Thousands of tests have produced a large friction database. These data are validated by back calculating effective coefficient of friction from actual cable installations. We make this data available in our lubricant technical data sheets or in the tension estimating software, Pull-Planner™
Polywater’s Pull-Planner program determines an appropriate quantity by calculating the volume of a complete coating of the interior of the conduit and/or the exterior of the cable jacket(s). So, the amount of lubricant recommended is proportional to both the length of the pull and the size of the cable/duct. For cable pulling, an excess of lubricant is not a problem, but for cable blowing, you need to avoid lubricant puddling.
No. The cable pulling environment and the ability and methodology used to apply the lubricant and are both important. While liquid lubricants work neatly in underground pulls by simply pouring into a feeder tube or upturned duct, they cannot be applied to cable going into overhead conduits, thanks to gravity. Lubricants that thicken or freeze at cold temperatures cause problems in cold weather applications. Maintaining friction reduction when pulling though a flooded conduit requires unique lubricant properties.
Lots of them! Most factors can be managed with good pulling procedures. There are “mathematical” effects from the location of bends in the conduit run. Dirt or sand filled conduit can increase friction considerably, much more than can be reduced by using a lubricant. High temperatures make cable jackets softer and raise their friction. In hot climates this can sometimes be controlled by pulling at cooler times of day. In cable blowing, a compressor cooler is necessary for optimal installation lengths. Read our installation literature and technical papers for best practices on controlling pulling tension.
While these materials are friction reducers, care must be taken not to use any lubricant that can swell, weaken, or crack the cable jacket. The cable manufacturer can be a source of information on the compatibility of various lubricants with various types of cable jacket. IEEE Standard 1210 covers the testing recommended to establish the compatibility of a lubricant with cable jacket.
Polywater lubricants are compatible with both prelubricated cable and prelubricated conduit. Addition of a pulling lubricant often optimizes the performance of these materials, especially in a difficult raceway configuration or particularly long run.
Pulling lubricants are conductive. Residue near the splice or conductor should be completely removed before cable is energized or tested. There is no problem with lubricant residue left on the cable jacket.
While fiber optic installation methods have significantly different procedures and equipment, they rely on a force to move the cable through the conduit. In pulling, the force is on the front of the cable and comes from a pulling winch. In cable blowing, the force results from the pressure differential between the compressor end and the open end of the conduit. Blowing produces a “localized” force along the entire cable jacket. Pulling and blowing need to overcome the frictional resistance to movement, and when that frictional resistance is reduced using a lubricant, pulling tension will decrease or blowing distance will increase.
Usually not. Pulling lubricants use a water base to carry and spread the lubricant though the conduit. You can typically see the lubricant on the surface of the cable when it emerges from the conduit. However, this type of slippery liquid or gel does not help in cable blowing. While blowing lubricants may be carried by water, the water evaporates quickly due to high velocity air flow. Effective blowing lubricants work dry, and they are designed to reduce friction with a very thin, “molecular” coating thicknesses. Excess lubricant can create too much surface tension or cause air locks, which can interfere with the installation process.
